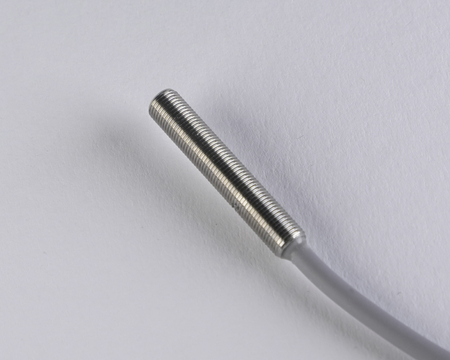

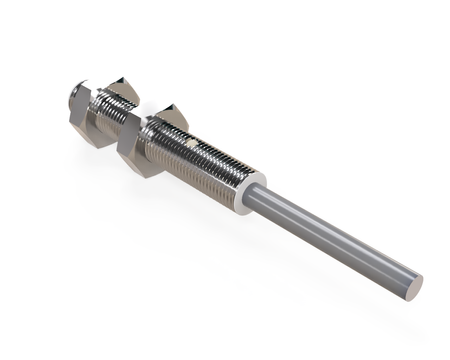

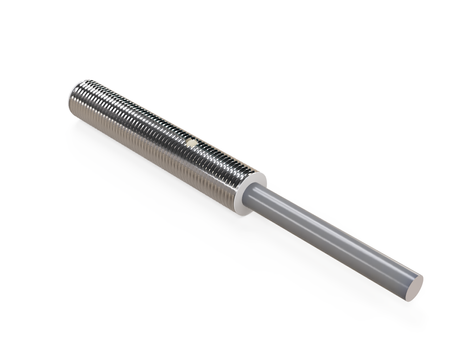

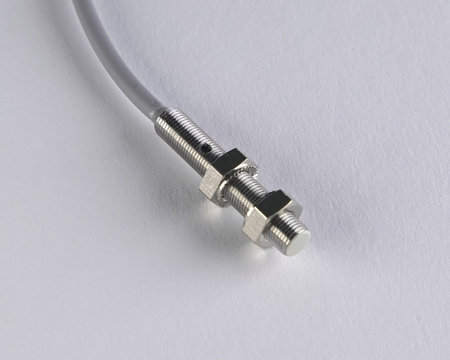

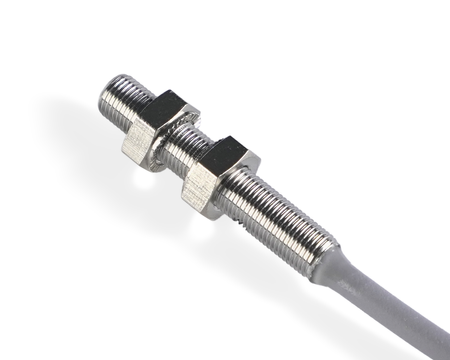

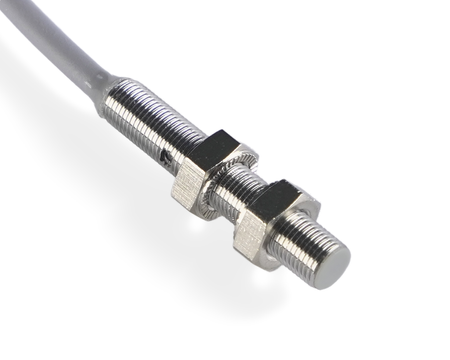

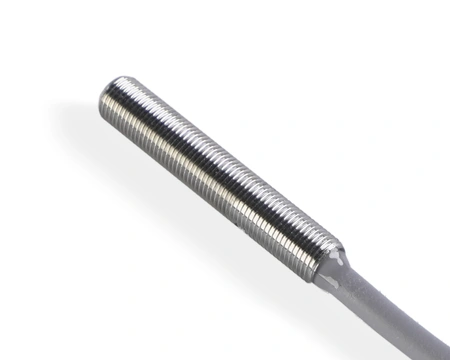

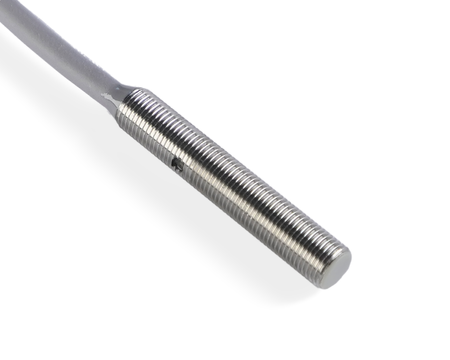

Inductive sensor M5 28 mm cable 3m PNP NC Sn = 0,8 mm
Symbol:
NIS05334
Inductive sensor M5 28 mm cable 3m PNP NC Sn = 0,8 mm
- ● M5 allows quick installation
- ● Shortened design for modular installations
- ● Nominal distance ensuring stability
- ● With cable – performs well in tough environments
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Files to download
NIS05334
A Teflon-faced inductive sensor NIS05334 is an excellent choice for automation systems where reliability and repeatable performance are essential.
The model is part of Nexotec’s line of small-sized sensors dedicated to industrial automation systems., Thanks to the small length of Ø5 x 28 mm, it can be used in shallow spaces.
Technical specification:
- Diameter: M5,
- Length: 28 mm, limited axial housing length
- Sensing range: 0,8 mm
- Housing: Threaded housing sensor
- Housing material: Stainless steel, long sensor lifetime
- Sensing face material: PBT,
- Mounting: flush mounting
- Switching function: NC, opens upon object detection
- Cable length: 3 m
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Detection of elements in automated vehicle production systems.
- Detection of workpieces before machining operations.
- Application in packaging lines for product presence detection.
- Use in automation of pick & place processes.
- Use in mass and custom production systems.
Features and Benefits
- Signal repeatability in mass production processes
- Resistance to coolants, oils and industrial contaminants
- Reliable operation in automated packaging systems
- Fast detection in pick & place processes
- Resistance to electromagnetic interference
When to choose this model
- A solution for applications requiring a high number of detection points in a small area.
- Ensures stable operation under standard industrial conditions.
- Good for systems with high component density.
- Performs well in systems with many closely spaced detection points.
Other information
Brand
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NIS05334
Producer code
5907367803839
Series
General information
DiameterMore
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
M5
Switching distance
0,8 mm
Mounting
Mounting Flush
Output function
PNP
Switching function
NC
Electrical data
Operating voltage
DC 10-30V
No load current
<10mA
Max load current
200mA
Leakage current
<0.01mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220mA
Voltage drop
<1,5V
Ripple
<10%
Response time
0,1ms
Switching frequency
2kHz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
PBT
LED display
YES

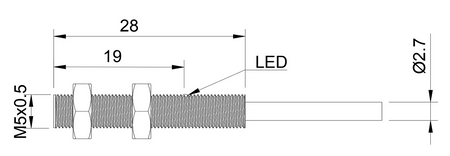

Dimensions
Ø5 x 28 mm
Sensor length
28 mm
Electrical connection
Connection type
Cable
Connector size
n/d
Number of pins
n/d
Cable length
3 m
Cable diameter
⌀ 2,7 mm
Cable
3 x 0,15 mm²
Cable material
PVC
Operating conditions
Protection category
IP67
Operating temperature min
-25℃
Operating temperature max
+70℃
Inne
Manufacturer code
NIS05334
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Współczynnik redukcji
Fe37 steel
1
Aluminium
0,35 - 0,6
Brass
0,4 - 0,7
Copper
0,25 – 0,5
Stainless steel
0,8 - 1
Cast iron
0,95 - 1
Nikiel
0,6 - 0,75
