Inductive sensor M5 28 mm cable 3m NPN NO Sn = 1 mm
Inductive sensor M5 28 mm cable 3m NPN NO Sn = 1 mm
Inductive sensor M5 28 mm cable 3m NPN NO Sn = 1 mm
Inductive sensor M5 28 mm cable 3m NPN NO Sn = 1 mm
Inductive sensor M5 28 mm cable 3m NPN NO Sn = 1 mm
Inductive sensor M5 28 mm cable 3m NPN NO Sn = 1 mm
Inductive sensor M5 28 mm cable 3m NPN NO Sn = 1 mm
Inductive sensor M5 28 mm cable 3m NPN NO Sn = 1 mm
Inductive sensor M5 28 mm cable 3m NPN NO Sn = 1 mm
Inductive sensor M5 28 mm cable 3m NPN NO Sn = 1 mm
Inductive sensor M5 28 mm cable 3m NPN NO Sn = 1 mm
Inductive sensor M5 28 mm cable 3m NPN NO Sn = 1 mm
Inductive sensor M5 28 mm cable 3m NPN NO Sn = 1 mm
Inductive sensor M5 28 mm cable 3m NPN NO Sn = 1 mm
Inductive sensor M5 28 mm cable 3m NPN NO Sn = 1 mm
Inductive sensor M5 28 mm cable 3m NPN NO Sn = 1 mm
Inductive sensor M5 28 mm cable 3m NPN NO Sn = 1 mm
Inductive sensor M5 28 mm cable 3m NPN NO Sn = 1 mm
Symbol: NIS05341

Inductive sensor M5 28 mm cable 3m NPN NO Sn = 1 mm

+ Add to compareAdd to shopping list
  • ● Compact M5 for standard assemblies
  • ● Mini enclosure saves space
  • ● Precise Sn distance for standard systems
  • ● With cable – stable under vibrations and shocks
Switching distance
Output function
Switching function
Sensor length
Connection type
Cable length

37,94 €

net / 1pcs
Lowest price in 30 days before discount: / pcs
Regular price: / pcs
List price:
You can buy for pts.
of
You can also buy using:
Create a request for quotation
Custom product
Contact the shop staff, in order to estimate time of preparing this product for shipment.
Custom product
Shipment
Free and fast delivery from 18,72 €
30 days for free returns
This product is not available in a stationary store
Safe shopping
After purchase you will receive pts.
Files to download

NIS05341

An inductive sensor NIS05341 with a Teflon sensing face is a modern industrial automation component that ensures stable operation and high wear resistance.

The product fits into Nexotec’s line of compact sensors designed for modern industrial installations., The compact Ø5 x 28 mm length enables installation in limited depth.

Technical specification:

  • Diameter: M5,
  • Length: 28 mm, design intended for tight installation spaces
  • Sensing range: 1 mm
  • Housing: Threaded housing sensor
  • Housing material: Stainless steel, resistant to aggressive industrial environments
  • Sensing face material: PBT,
  • Mounting: flush mounting
  • Switching function: NO, signal generated upon metal detection
  • Cable length: 3 m
  • Supply voltage: DC 10-30V, stable operation in DC automation

Applications

  • Use in positioning and production synchronization systems.
  • Use in automation of cutting and milling processes.
  • Use in automation of packaging and sorting processes.
  • Detection of elements in robotic work zones.
  • Control of processes in complex mechanical systems.

Features and Benefits

  • Resistance to vibrations and intensive operation
  • Easy integration with dosing and labeling machines
  • Resistance to frequent cycles and micro-vibrations
  • Long service life in continuous operation

When to choose this model

  • A good choice for detecting small metal parts in industrial automation.
  • Suitable for upgrading existing machines.
  • Used in systems requiring flexible mounting.
  • Used in systems with limited service access.
Other information
Brand
Nexotec
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NIS05341
Producer code
5907367803846
Series
NIS05
Warranty
Manufacturer's warranty for 2 years
General information
DiameterMore

The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.

M5
Switching distance
1 mm
Mounting
Mounting Flush
Output function
NPN
Switching function
NO
Electrical data
Operating voltage
DC 10-30V
No load current
<10mA
Max load current
200mA
Leakage current
<0.01mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220mA
Voltage drop
<1,5V
Ripple
<10%
Response time
0,1ms
Switching frequency
2kHz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
PBT
LED display
YES

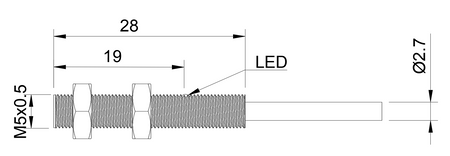

Dimensions
Ø5 x 28 mm
Sensor length
28 mm
Electrical connection
Connection type
Cable
Connector size
n/d
Number of pins
n/d
Cable length
3 m
Cable diameter
⌀ 2,7 mm
Cable
3 x 0,15 mm²
Cable material
PVC
Operating conditions
Protection category
IP67
Operating temperature min
-25℃
Operating temperature max
+70℃
Inne
Manufacturer code
NIS05341
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Współczynnik redukcji
Fe37 steel
1
Aluminium
0,35 - 0,6
Brass
0,4 - 0,7
Copper
0,25 – 0,5
Stainless steel
0,8 - 1
Cast iron
0,95 - 1
Nikiel
0,6 - 0,75
Manufacturer's warranty for 2 years

The manufacturer guarantees repair or replacement of the equipment for up to 24 months from the date of purchase. Contact the store via the complaint form to order a courier who will collect the equipment from your home.
