Symbol: NIS05331

Inductive sensor M5 28 mm cable 3m NPN NO Sn = 0,8 mm

+ Add to compareAdd to shopping list
  • ● M5 enables precise positioning
  • ● Mini enclosure saves space
  • ● Sn distance ensuring consistent detection
  • ● With cable – simple installation in standard machinery
Switching distance
Output function
Switching function
Sensor length
Connection type
Cable length

30,52 €

net / 1pcs
Lowest price in 30 days before discount: / pcs
Regular price: / pcs
List price:
You can buy for pts.
of
You can also buy using:
Create a request for quotation
Custom product
Contact the shop staff, in order to estimate time of preparing this product for shipment.
Custom product
Shipment
Free and fast delivery from 18,72 €
30 days for free returns
This product is not available in a stationary store
Safe shopping
After purchase you will receive pts.
Files to download

NIS05331

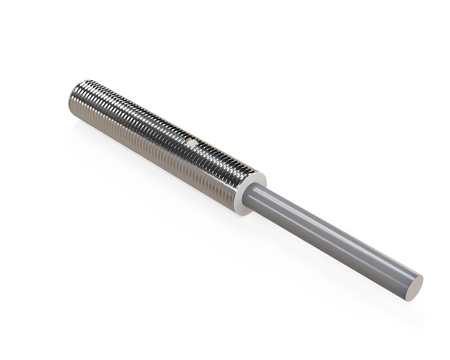

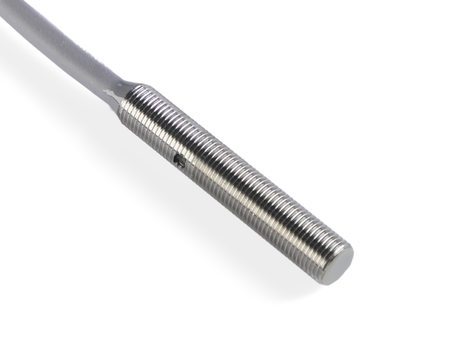

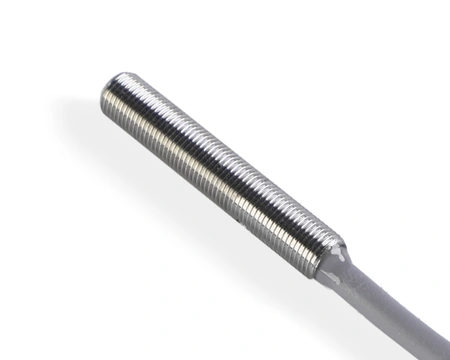

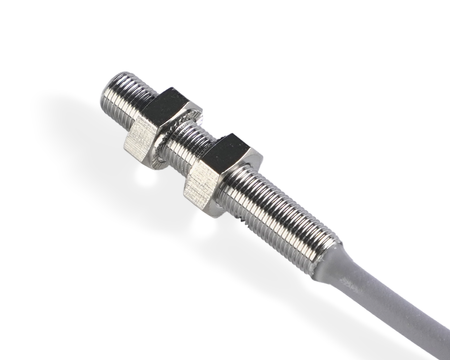

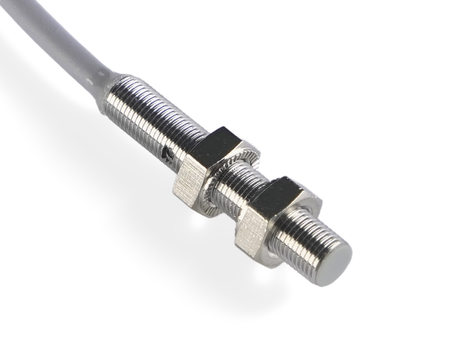

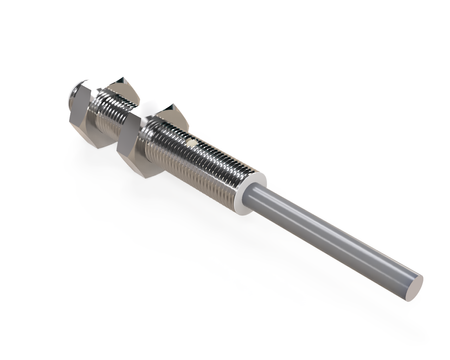

An inductive sensor NIS05331 for industrial automation with a Teflon coating provides stable and long-lasting performance.

The model represents a line of Nexotec sensors designed for automation where small size and reliability matter., The subminiature Ø5 x 28 mm design allows use in the most demanding spaces.

Technical specification:

  • Diameter: M5,
  • Length: 28 mm, used in miniature automation systems
  • Sensing range: 0,8 mm
  • Housing: Threaded housing sensor
  • Housing material: Stainless steel, resistant to aggressive industrial environments
  • Sensing face material: PBT, stable dielectric properties for inductive field
  • Mounting: flush mounting
  • Switching function: NO, standard inductive sensor logic
  • Cable length: 3 m
  • Supply voltage: DC 10-30V, stable operation in DC automation

Applications

  • Detection of elements in automated vehicle production systems.
  • Support for automatic clamping systems.
  • Use in automation of packaging and sorting processes.
  • Position control of grippers and robotic actuators.
  • Position detection in special-purpose machines.

Features and Benefits

  • Resistance to vibrations and intensive operation
  • Reliable operation in automated packaging systems
  • Resistance to frequent cycles and micro-vibrations
  • Stable operation in high-duty cycle machines

When to choose this model

  • Ideal for installation in densely packed assembly stations.
  • Suitable for upgrading existing machines.
  • Used in systems requiring flexible mounting.
  • Used in systems with limited service access.
Other information
Brand
Nexotec
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NIS05331
Producer code
5907367803808
Series
NIS05
Warranty
Manufacturer's warranty for 2 years
General information
DiameterMore

The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.

M5
Switching distance
0,8 mm
Mounting
Mounting Flush
Output function
NPN
Switching function
NO
Electrical data
Operating voltage
DC 10-30V
No load current
<10mA
Max load current
200mA
Leakage current
<0.01mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220mA
Voltage drop
<1,5V
Ripple
<10%
Response time
0,1ms
Switching frequency
2kHz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
PBT
LED display
YES

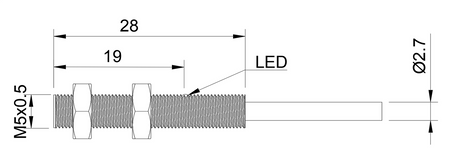

Dimensions
Ø5 x 28 mm
Sensor length
28 mm
Electrical connection
Connection type
Cable
Connector size
n/d
Number of pins
n/d
Cable length
3 m
Cable diameter
⌀ 2,7 mm
Cable
3 x 0,15 mm²
Cable material
PVC
Operating conditions
Protection category
IP67
Operating temperature min
-25℃
Operating temperature max
+70℃
Inne
Manufacturer code
NIS05331
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Współczynnik redukcji
Fe37 steel
1
Aluminium
0,35 - 0,6
Brass
0,4 - 0,7
Copper
0,25 – 0,5
Stainless steel
0,8 - 1
Cast iron
0,95 - 1
Nikiel
0,6 - 0,75
