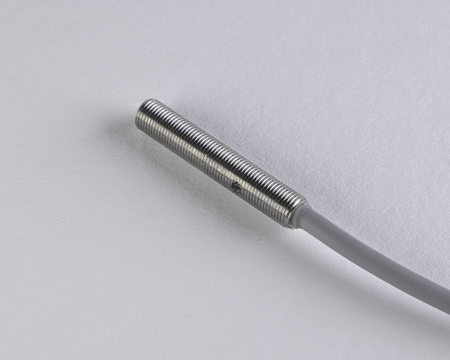

Inductive sensor M5 28 mm cable 2m PNP NO Sn = 1,5 mm
- ● Compact M5 simplifies embedding
- ● Compact housing for tight mounting spaces
- ● Reliable detection range for everyday applications
- ● With cable – stainless steel housing
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A compact inductive sensor NIS05053 with a PBT sensing face is a reliable solution for control systems and production lines.
This compact Nexotec sensor is part of a miniature product series for demanding industrial applications. The miniature Ø5 x 28 mm housing enables installation where standard sizes are not applicable.
Technical specification:

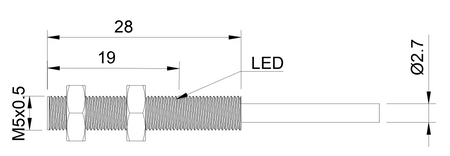

- Diameter: M5,
- Length: 28 mm, low weight and compact sensor format
- Sensing range: 1,5 mm
- Housing: Threaded housing sensor
- Housing material: Stainless steel, increased mechanical strength
- Sensing face material: PBT,
- Mounting: Flush mounting
- Switching function: NO, normally open state at rest
- Cable length: 2 m
- Supply voltage: DC 10-30V, compatible with PLC systems
Applications
- Application in production lines of automotive components for detecting the presence of metal elements.
- Detection of workpieces before machining operations.
- Application in packaging transport systems.
- Detection of elements in robotic work zones.
- Support for high-duty cycle equipment operation.
Features and Benefits
- High reliability in automated automotive production lines
When to choose this model
- Used where small dimensions and stable operation are required.
- Well suited for projects requiring miniaturization.
- Used in light production processes.
- Used in automation with limited installation space.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
This product is covered by a 24-month warranty from the date of purchase. Claims can be submitted via the complaint form in our shop. Your statutory rights are not affected by this warranty.
