Inductive sensor M5 25 mm cable 5m PNP NC Sn = 1 mm
- ● Medium-diameter M5 simplifies integration
- ● Short version for confined workspaces
- ● Verified Sn distance for typical applications
- ● With cable – solid and reliable construction
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
NIS05514
A versatile Teflon-faced inductive sensor NIS05514 combines durability, a compact design, and reliable performance.
This Nexotec miniature inductive sensor is part of a series created for space-saving automation solutions., Ø5 x 25 mm sensors, thanks to their size, fit into very small housings.
Technical specification:

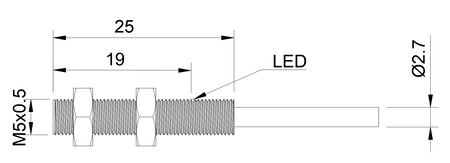

- Diameter: M5,
- Length: 25 mm, low weight and compact sensor format
- Sensing range: 1 mm
- Housing: Threaded housing sensor
- Housing material: Stainless steel, increased mechanical strength
- Sensing face material: PBT,
- Mounting: flush mounting
- Switching function: NC, opens upon object detection
- Cable length: 5 m
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Use in positioning and production synchronization systems.
- Application in CNC machines for position control of elements and tools.
- Application in forming and sealing machines.
- Support for synchronization of robots and machines.
- Application in industrial machines for controlling position of moving parts.
Features and Benefits
- Stable operation in high-dynamic cycle environments
- Reliable synchronization of machines and robots
When to choose this model
- A solution for applications requiring a high number of detection points in a small area.
- Well suited for projects requiring miniaturization.
- Well suited for multi-point applications.
- Ensures reliability in light production cycles.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
