Inductive sensor M5 25 mm cable 5m NPN NO Sn = 0,8 mm
Symbol:
NIS05501
Inductive sensor M5 25 mm cable 5m NPN NO Sn = 0,8 mm
- ● Minimal M5 simplifies system planning
- ● Short housing for limited spaces
- ● Ideal for detection within standard range
- ● With cable – resistant to dirt and dust
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Files to download
NIS05501
A Teflon-faced inductive sensor NIS05501 ensures reliable operation in automation and process control systems.
The Nexotec series to which this sensor belongs was designed for applications requiring miniature and efficient components., The subminiature Ø5 x 25 mm design allows use in the most demanding spaces.
Technical specification:
- Diameter: M5,
- Length: 25 mm, used in miniature automation systems
- Sensing range: 0,8 mm
- Housing: Threaded housing sensor
- Housing material: Stainless steel, suitable for operation in humidity and contamination
- Sensing face material: PBT, sensing face material – PBT
- Mounting: flush mounting
- Switching function: NO, normally open state at rest
- Cable length: 5 m
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Application in robotized assembly stations.
- Detection of workpieces before machining operations.
- Application in packaging transport systems.
- Detection of elements in robotic work zones.
- Use in mass and custom production systems.
Features and Benefits
- Easy integration with robotic and PLC systems
- Compatibility with standard industrial control systems
- High response speed in packaging lines
- Stable operation in high-duty cycle machines
When to choose this model
- A good choice for detecting small metal parts in industrial automation.
- Used in compact production lines.
- Used in systems requiring flexible mounting.
- Good for applications requiring fast signal response.
Other information
Brand
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NIS05501
Producer code
5907367804041
Series
General information
DiameterMore
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
M5
Switching distance
0,8 mm
Mounting
Mounting Flush
Output function
NPN
Switching function
NO
Electrical data
Operating voltage
DC 10-30V
No load current
<10mA
Max load current
200mA
Leakage current
<0.01mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220mA
Voltage drop
<1,5V
Ripple
<10%
Response time
0,1ms
Switching frequency
2kHz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
PBT
LED display
YES

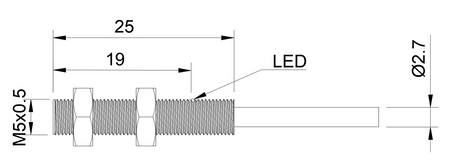

Dimensions
Ø5 x 25 mm
Sensor length
25 mm
Electrical connection
Connection type
Cable
Connector size
n/d
Number of pins
n/d
Cable length
5 m
Cable diameter
⌀ 2,7 mm
Cable
3 x 0,15 mm²
Cable material
PVC
Operating conditions
Protection category
IP67
Operating temperature min
-25℃
Operating temperature max
+70℃
Inne
Manufacturer code
NIS05501
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Współczynnik redukcji
Fe37 steel
1
Aluminium
0,35 - 0,6
Brass
0,4 - 0,7
Copper
0,25 – 0,5
Stainless steel
0,8 - 1
Cast iron
0,95 - 1
Nikiel
0,6 - 0,75
