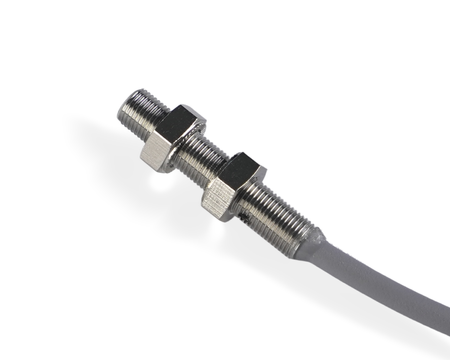

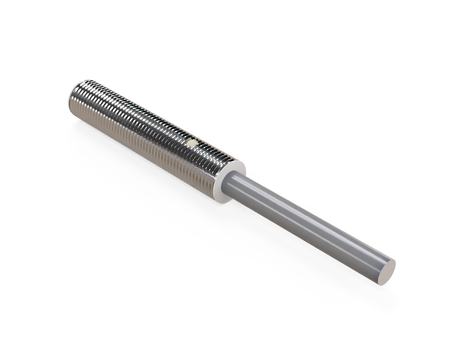

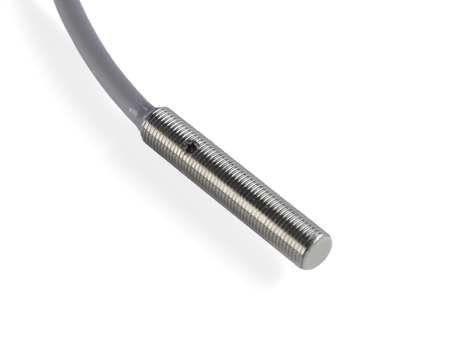

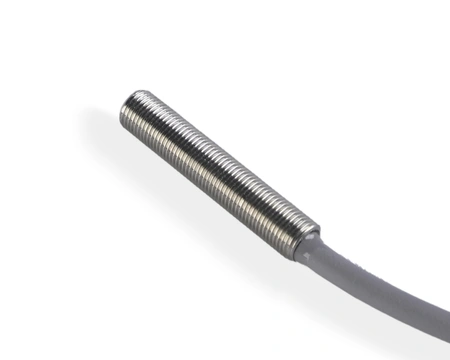

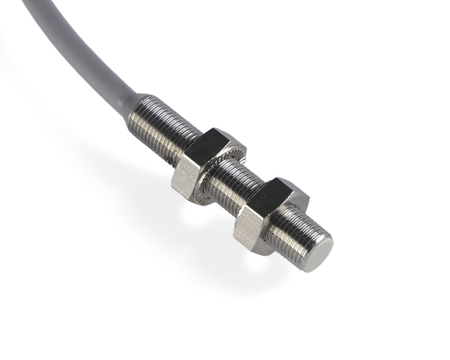

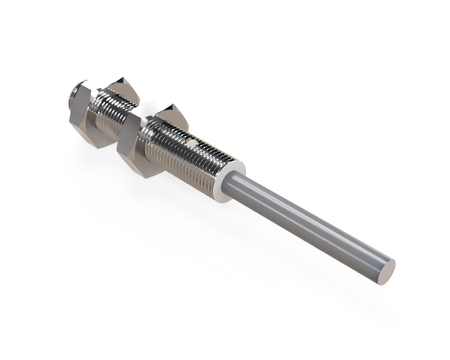

Inductive sensor M5 25 mm cable 3m NPN NO Sn = 1,5 mm
Symbol:
NIS05321
Inductive sensor M5 25 mm cable 3m NPN NO Sn = 1,5 mm
- ● M5 small diameter simplifies component placement
- ● Short housing for densely packed assemblies
- ● Optimal measurement range for routine tasks
- ● With cable – durable in harsh conditions
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Files to download
NIS05321
An inductive sensor NIS05321 for industrial automation with a Teflon coating provides stable and long-lasting performance.
This Nexotec miniature inductive sensor is part of a series created for space-saving automation solutions., Ø5 x 25 mm sensors, thanks to their dimensions, are ideal for micromechanics and small devices.
Technical specification:
- Diameter: M5,
- Length: 25 mm, limited axial housing length
- Sensing range: 1,5 mm
- Housing: Threaded housing sensor
- Housing material: Stainless steel, resistant to aggressive industrial environments
- Sensing face material: PBT, sensing face material – PBT
- Mounting: Semi-flush mounting
- Switching function: NO, signal generated upon metal detection
- Cable length: 3 m
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Detection of elements in automated vehicle production systems.
- Application in CNC machines for position control of elements and tools.
- Operation in high-speed packaging production cycles.
- Application in robotic axis positioning systems.
- Position detection in special-purpose machines.
Features and Benefits
- Resistance to vibrations and intensive operation
- Compatibility with standard industrial control systems
- Reliable operation in automated packaging systems
- Resistance to frequent cycles and micro-vibrations
- Reliable operation in safety and control systems
When to choose this model
- A solution for applications requiring a high number of detection points in a small area.
- Well suited for projects requiring miniaturization.
- Suitable for small-sized devices.
- Ensures reliability in light production cycles.
Other information
Brand
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NIS05321
Producer code
5907367803761
Series
General information
DiameterMore
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
M5
Switching distance
1,5 mm
Mounting
Mounting Flush
Output function
NPN
Switching function
NO
Electrical data
Operating voltage
DC 10-30V
No load current
<10mA
Max load current
200mA
Leakage current
<0.01mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220mA
Voltage drop
<1,5V
Ripple
<10%
Response time
0,1ms
Switching frequency
2kHz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
PBT
LED display
YES

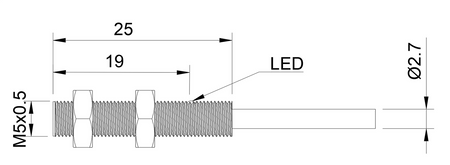

Dimensions
Ø5 x 25 mm
Sensor length
25 mm
Electrical connection
Connection type
Cable
Connector size
n/d
Number of pins
n/d
Cable length
3 m
Cable diameter
⌀ 2,7 mm
Cable
3 x 0,15 mm²
Cable material
PVC
Operating conditions
Protection category
IP67
Operating temperature min
-25℃
Operating temperature max
+70℃
Inne
Manufacturer code
NIS05321
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Współczynnik redukcji
Fe37 steel
1
Aluminium
0,35 - 0,6
Brass
0,4 - 0,7
Copper
0,25 – 0,5
Stainless steel
0,8 - 1
Cast iron
0,95 - 1
Nikiel
0,6 - 0,75
