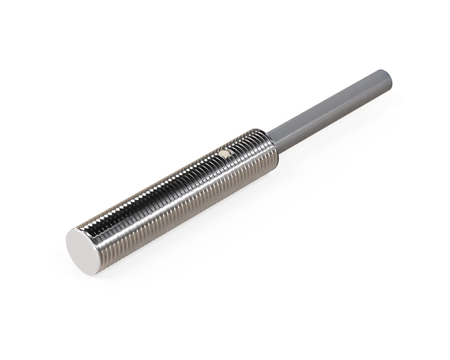

Inductive sensor M5 25 mm cable 3m NPN NO Sn = 0,8 mm
Symbol:
NIS05301

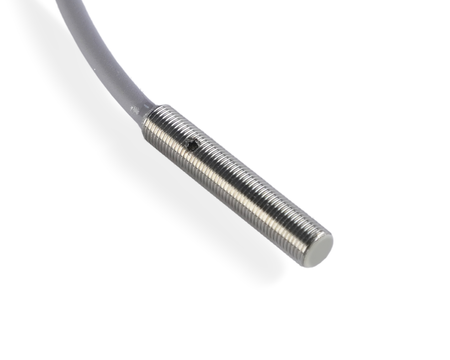

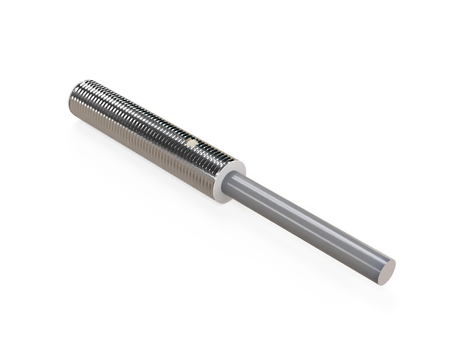

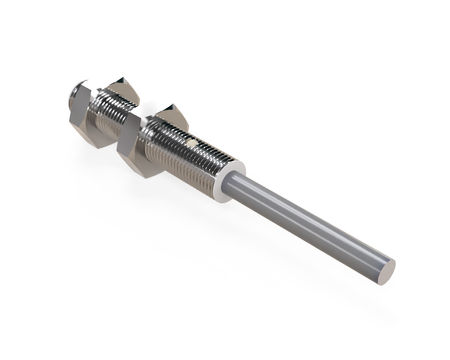

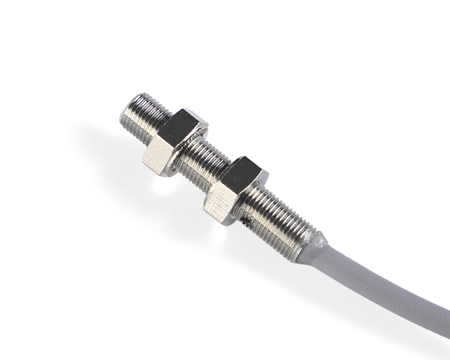

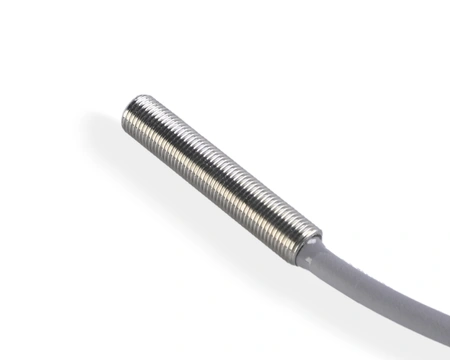

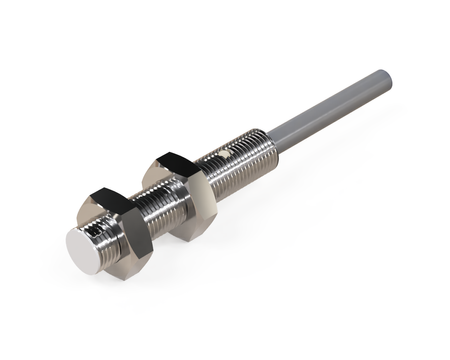

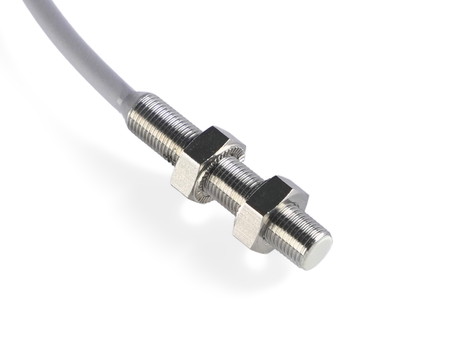

Inductive sensor M5 25 mm cable 3m NPN NO Sn = 0,8 mm
- ● M5 ideal for small installations
- ● Compact module for densely packed systems
- ● Standard range for everyday machine operation
- ● With cable – easy installation and setup
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Files to download
NIS05301
A Teflon-faced inductive sensor NIS05301 is an efficient solution for production systems and control circuits.
This model is part of the Nexotec miniature series, ideal for operation in limited mounting space., The small diameter of Ø5 x 25 mm sensors allows installation close to other components.
Technical specification:
- Diameter: M5,
- Length: 25 mm, low weight and compact sensor format
- Sensing range: 0,8 mm
- Housing: Threaded housing sensor
- Housing material: Stainless steel, increased mechanical strength
- Sensing face material: PBT,
- Mounting: flush mounting
- Switching function: NO, used in typical control applications
- Cable length: 3 m
- Supply voltage: DC 10-30V, commonly used control supply
Applications
- Use in positioning and production synchronization systems.
- Application in tool change and positioning systems.
- Application in forming and sealing machines.
- Use in automatic assembly systems.
- Support for high-duty cycle equipment operation.
Features and Benefits
- High reliability in automated automotive production lines
- Resistance to coolants, oils and industrial contaminants
- Reliable operation in automated packaging systems
- Reliable synchronization of machines and robots
- Resistance to electromagnetic interference
When to choose this model
- A solution for applications requiring a high number of detection points in a small area.
- Used in compact production lines.
- Used in systems requiring flexible mounting.
- Ensures reliability in light production cycles.
Other information
Brand
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NIS05301
Producer code
5907367803686
Series
General information
DiameterMore
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
M5
Switching distance
0,8 mm
Mounting
Mounting Flush
Output function
NPN
Switching function
NO
Electrical data
Operating voltage
DC 10-30V
No load current
<10mA
Max load current
200mA
Leakage current
<0.01mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220mA
Voltage drop
<1,5V
Ripple
<10%
Response time
0,1ms
Switching frequency
2kHz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
PBT
LED display
YES

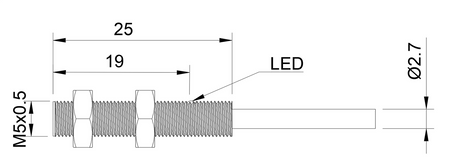

Dimensions
Ø5 x 25 mm
Sensor length
25 mm
Electrical connection
Connection type
Cable
Connector size
n/d
Number of pins
n/d
Cable length
3 m
Cable diameter
⌀ 2,7 mm
Cable
3 x 0,15 mm²
Cable material
PVC
Operating conditions
Protection category
IP67
Operating temperature min
-25℃
Operating temperature max
+70℃
Inne
Manufacturer code
NIS05301
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Współczynnik redukcji
Fe37 steel
1
Aluminium
0,35 - 0,6
Brass
0,4 - 0,7
Copper
0,25 – 0,5
Stainless steel
0,8 - 1
Cast iron
0,95 - 1
Nikiel
0,6 - 0,75
