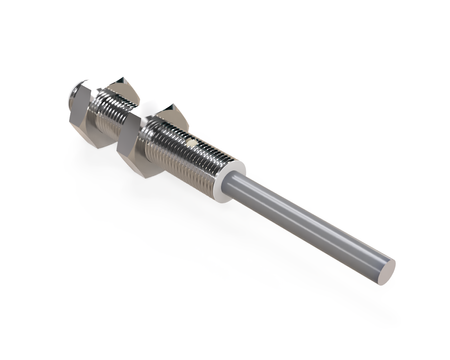

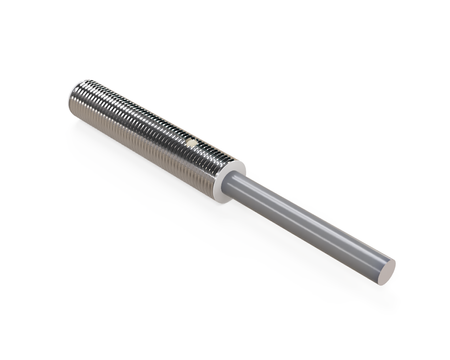

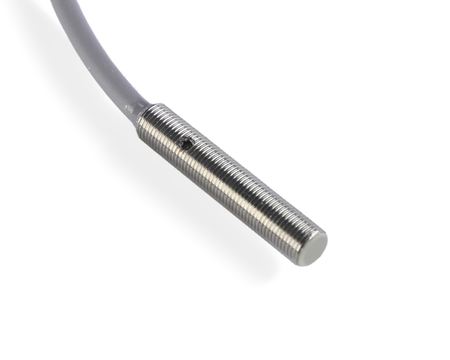

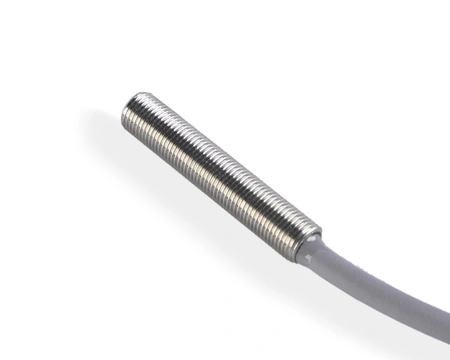

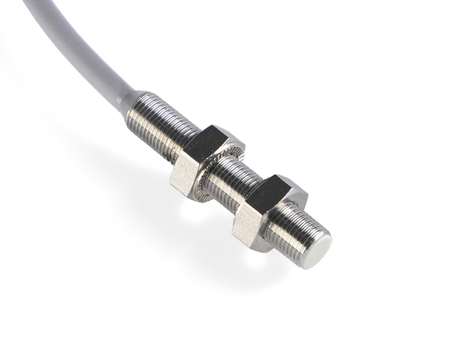

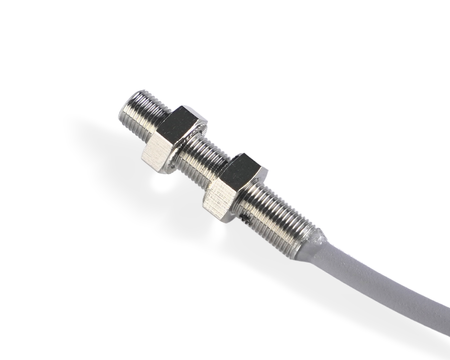

Inductive sensor M5 25 mm cable 3m NPN NC Sn = 0,8 mm
Symbol:
NIS05302
Inductive sensor M5 25 mm cable 3m NPN NC Sn = 0,8 mm
- ● Compact M5 for medium-sized systems
- ● Compact solution for tight spaces
- ● Verified Sn distance for typical applications
- ● With cable – resistant to cleaning agents and chemicals
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Files to download
NIS05302
An inductive sensor NIS05302 for industrial applications with a Teflon sensing face stands out for its high mechanical resistance and stable operation.
This Nexotec series model provides high efficiency while maintaining a compact housing size., Ø5 x 25 mm sensors occupy minimal space while maintaining full functionality.
Technical specification:
- Diameter: M5,
- Length: 25 mm, design intended for tight installation spaces
- Sensing range: 0,8 mm
- Housing: Threaded housing sensor
- Housing material: Stainless steel, long sensor lifetime
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: flush mounting
- Switching function: NC, opens upon object detection
- Cable length: 3 m
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Application in robotized assembly stations.
- Detection of workpieces before machining operations.
- Application in packaging transport systems.
- Detection of elements in robotic work zones.
- Application in OEM machine automation.
Features and Benefits
- Precise detection of metal components in assembly processes
- High response speed in packaging lines
- Fast detection in pick & place processes
- High resistance to harsh industrial conditions
When to choose this model
- Suitable for compact OEM machines and special-purpose equipment.
- Used where mounting space is a key limitation.
- Well suited for multi-point applications.
- Well suited for multi-point applications.
Other information
Brand
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NIS05302
Producer code
5907367803693
Series
General information
DiameterMore
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
M5
Switching distance
0,8 mm
Mounting
Mounting Flush
Output function
NPN
Switching function
NC
Electrical data
Operating voltage
DC 10-30V
No load current
<10mA
Max load current
200mA
Leakage current
<0.01mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220mA
Voltage drop
<1,5V
Ripple
<10%
Response time
0,1ms
Switching frequency
2kHz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
PBT
LED display
YES

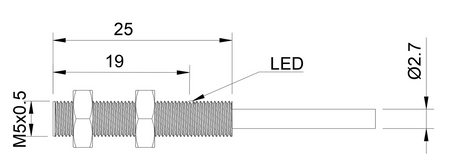

Dimensions
Ø5 x 25 mm
Sensor length
25 mm
Electrical connection
Connection type
Cable
Connector size
n/d
Number of pins
n/d
Cable length
3 m
Cable diameter
⌀ 2,7 mm
Cable
3 x 0,15 mm²
Cable material
PVC
Operating conditions
Protection category
IP67
Operating temperature min
-25℃
Operating temperature max
+70℃
Inne
Manufacturer code
NIS05302
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Współczynnik redukcji
Fe37 steel
1
Aluminium
0,35 - 0,6
Brass
0,4 - 0,7
Copper
0,25 – 0,5
Stainless steel
0,8 - 1
Cast iron
0,95 - 1
Nikiel
0,6 - 0,75
Manufacturer's warranty for 2 years
The manufacturer guarantees repair or replacement of the equipment for up to 24 months from the date of purchase. Contact the store via the complaint form to order a courier who will collect the equipment from your home.
