Inductive sensor M5 25 mm cable 2m PNP NO Sn = 1 mm
Symbol:
NIS05013
Inductive sensor M5 25 mm cable 2m PNP NO Sn = 1 mm
- ● M5 enables precise positioning
- ● Ideal for confined mounting areas
- ● Reliable detection range for everyday applications
- ● With cable – resistant to dirt and dust
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Files to download
NIS05013
A compact inductive sensor NIS05013 with a Teflon face is a reliable solution for control systems and production lines.
The product fits into Nexotec’s line of compact sensors designed for modern industrial installations., Thanks to the ultra-small Ø5 x 25 mm diameter, the sensors can be installed in extremely tight spaces.
Technical specification:
- Diameter: M5,
- Length: 25 mm, low weight and compact sensor format
- Sensing range: 1 mm
- Housing: Threaded housing sensor
- Housing material: Stainless steel, suitable for operation in humidity and contamination
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: flush mounting
- Switching function: NO, standard inductive sensor logic
- Cable length: 2 m
- Supply voltage: DC 10-30V, commonly used control supply
Applications
- Support for automation of welding processes and steel structure assembly.
- Use in automation of cutting and milling processes.
- Detection of metal elements and components in packaging systems.
- Application in robotic axis positioning systems.
- Use in actuator and mechanism control systems.
Features and Benefits
- Precise synchronization of production processes
- Reliable operation in safety and control systems
When to choose this model
- Ideal for installation in densely packed assembly stations.
- Often used in light automation and simple control systems.
- Well suited for multi-point applications.
- Ensures reliability in light production cycles.
Other information
Brand
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NIS05013
Producer code
5907367803129
Series
General information
DiameterMore
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
M5
Switching distance
1 mm
Mounting
Mounting Flush
Output function
PNP
Switching function
NO
Electrical data
Operating voltage
DC 10-30V
No load current
<10mA
Max load current
200mA
Leakage current
<0.01mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220mA
Voltage drop
<1,5V
Ripple
<10%
Response time
0,1ms
Switching frequency
2kHz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
PBT
LED display
YES

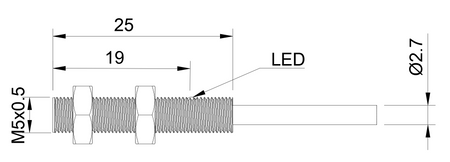

Dimensions
Ø5 x 25 mm
Sensor length
25 mm
Electrical connection
Connection type
Cable
Connector size
n/d
Number of pins
n/d
Cable length
2 m
Cable diameter
⌀ 2,7 mm
Cable
3 x 0,15 mm²
Cable material
PVC
Operating conditions
Protection category
IP67
Operating temperature min
-25℃
Operating temperature max
+70℃
Inne
Manufacturer code
NIS05013
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Współczynnik redukcji
Fe37 steel
1
Aluminium
0,35 - 0,6
Brass
0,4 - 0,7
Copper
0,25 – 0,5
Stainless steel
0,8 - 1
Cast iron
0,95 - 1
Nikiel
0,6 - 0,75
Manufacturer's warranty for 2 years
