Inductive sensor M5 25 mm cable 2m NPN NO Sn = 1,5 mm
Symbol:
NIS05021
Inductive sensor M5 25 mm cable 2m NPN NO Sn = 1,5 mm
- ● M5 allows quick installation
- ● Compact solution for tight spaces
- ● Precise Sn distance for standard systems
- ● With cable – chemically and mechanically durable
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Files to download
NIS05021
An industrial inductive sensor NIS05021 with a Teflon sensing face is ideal for applications requiring durability and precise performance.
This model is part of the Nexotec miniature series, ideal for operation in limited mounting space., The small diameter of Ø5 x 25 mm sensors allows installation close to other components.
Technical specification:
- Diameter: M5,
- Length: 25 mm, used in miniature automation systems
- Sensing range: 1,5 mm
- Housing: Threaded housing sensor
- Housing material: Stainless steel, long sensor lifetime
- Sensing face material: PBT,
- Mounting: Semi-flush mounting
- Switching function: NO, used in typical control applications
- Cable length: 2 m
- Supply voltage: DC 10-30V, commonly used control supply
Applications
- Use in positioning and production synchronization systems.
- Support for automatic clamping systems.
- Control of production line synchronization.
- Control of cycle operation in automated production lines.
- Control of processes in complex mechanical systems.
Features and Benefits
- Easy integration with robotic and PLC systems
- High detection precision in machining environments
- Stable detection in high-throughput processes
- Resistance to frequent cycles and micro-vibrations
- Stable operation in high-duty cycle machines
When to choose this model
- A solution for applications requiring a high number of detection points in a small area.
- Designed for applications with moderate operating dynamics.
- Used in light production processes.
- Used in automation with limited installation space.
Other information
Brand
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NIS05021
Producer code
5907367803143
Series
General information
DiameterMore
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
M5
Switching distance
1,5 mm
Mounting
Mounting Flush
Output function
NPN
Switching function
NO
Electrical data
Operating voltage
DC 10-30V
No load current
<10mA
Max load current
200mA
Leakage current
<0.01mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220mA
Voltage drop
<1,5V
Ripple
<10%
Response time
0,1ms
Switching frequency
2kHz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
PBT
LED display
YES

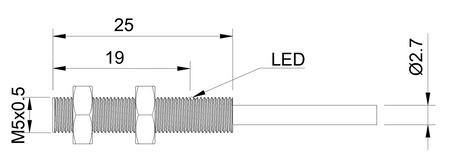

Dimensions
Ø5 x 25 mm
Sensor length
25 mm
Electrical connection
Connection type
Cable
Connector size
n/d
Number of pins
n/d
Cable length
2 m
Cable diameter
⌀ 2,7 mm
Cable
3 x 0,15 mm²
Cable material
PVC
Operating conditions
Protection category
IP67
Operating temperature min
-25℃
Operating temperature max
+70℃
Inne
Manufacturer code
NIS05021
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Współczynnik redukcji
Fe37 steel
1
Aluminium
0,35 - 0,6
Brass
0,4 - 0,7
Copper
0,25 – 0,5
Stainless steel
0,8 - 1
Cast iron
0,95 - 1
Nikiel
0,6 - 0,75
Manufacturer's warranty for 2 years
