Symbol: NIS04504

Inductive sensor M4 25 mm cable 5m PNP NC Sn = 0,6 mm

+ Add to compareAdd to shopping list
  • ● Compact M4 for tight systems
  • ● Compact solution for tight spaces
  • ● Nominal distance ensuring stability
  • ● With cable – stainless steel housing
Switching distance
Output function
Switching function
Connection type
Cable length
43,21 €
net / 1pcs
Lowest price in 30 days before discount: / pcs
Regular price: / pcs
List price:
You can buy for pts.
of
You can also buy using:
Create a request for quotation
Product available in very large quantities
Contact the shop staff, in order to estimate time of preparing this product for shipment.
Product available in very large quantities
Shipment
Free and fast delivery from 9,24 €
30 days for free returns
Find out in which store you can check the product and buy it right away
Inductive sensor M4 25 mm cable 5m PNP NC Sn = 0,6 mm
Inductive sensor M4 25 mm cable 5m PNP NC Sn = 0,6 mm
Switching distance:0,6 mm
Output function:PNP
Switching function:NC
Connection type:Cable
Cable length:5 m
one size
Safe shopping
After purchase you will receive pts.
Files to download

An inductive sensor NIS04504 for industrial applications with a PBT sensing face stands out for its high mechanical resistance and stable operation.

The model is part of Nexotec’s line of small-sized sensors dedicated to industrial automation systems. The miniature Ø4 x 25 mm housing enables installation where standard sizes are not applicable.

Technical specification:

  • Diameter: M4, compact format enables installation in small machine structures
  • Length: 25 mm, low weight and compact sensor format
  • Sensing range: 0,6 mm
  • Housing: Threaded housing sensor
  • Housing material: Stainless steel, suitable for operation in humidity and contamination
  • Sensing face material: PBT, stable dielectric properties for inductive field
  • Mounting: flush mounting
  • Switching function: NC, signal continuity monitoring
  • Cable length: 5 m
  • Supply voltage: DC 10-30V, protection against typical voltage fluctuations

Applications

  • Application in production lines of automotive components for detecting the presence of metal elements.
  • Position control of machine axes and working components.
  • Application in forming and sealing machines.
  • Use in automatic assembly systems.
  • Use in mass and custom production systems.

Features and Benefits

  • Precise detection of metal components in assembly processes
  • Compatibility with standard industrial control systems
  • Easy integration with dosing and labeling machines
  • Reliable synchronization of machines and robots
  • Reliable operation in safety and control systems

When to choose this model

  • A solution for applications requiring a high number of detection points in a small area.
  • Designed for applications with moderate operating dynamics.
  • Performs well in applications requiring repeatable detection.
  • Chosen for precise small mechanisms.
Other information
Brand
Nexotec
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolandPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolandPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NIS04504
Producer code
5907367800319
Series
NIS04
Warranty
24-month warranty
General information
DiameterMore

The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.

M4
Switching distanceMore

Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.

0,6 mm
Mounting
Mounting Flush
Output function
PNP
Switching function
NC
Electrical data
Operating voltage
10–30 V DC
No load current
<10 mA
Max load current
100mA
Leakage current
<0.01 mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Reverse polarity protection
YES
Overload trip point
120 mA
Voltage drop
<1.5 V
Ripple
<10%
Response time
0.1 ms
Switching frequency
2 kHz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
PBT
LED display
YES

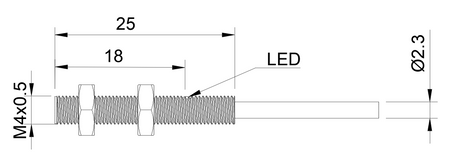

Dimensions
Ø4 x 25 mm
Sensor length
25 mm
Electrical connection
Connection type
Cable
Connector size
n/d
Number of pins
n/d
Number of wires
3
Cable length
5 m
Cable diameter
⌀ 2,3 mm
Cable
3 x 0,15 mm²
Cable material
PUR
Operating conditions
Protection category
IP67
Operating temperature min
-25°C
Operating temperature max
+70°C
Other
Manufacturer code
NIS04504
Condition
New
Packaging condition
Original
Type
Inductive
Net weight
37 g
Weight in kg
0,042
Reduction factor
Fe37 steel
1
Aluminium
0,35 - 0,6
Brass
0,4 - 0,7
Copper
0,25 – 0,5
Stainless steel
0,8 - 1
Cast iron
0,95 - 1
Nickel
0,6 - 0,75
