Symbol: NIS04001

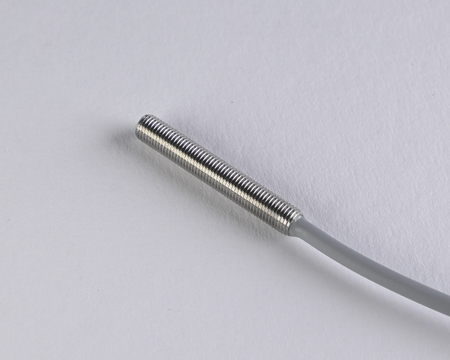

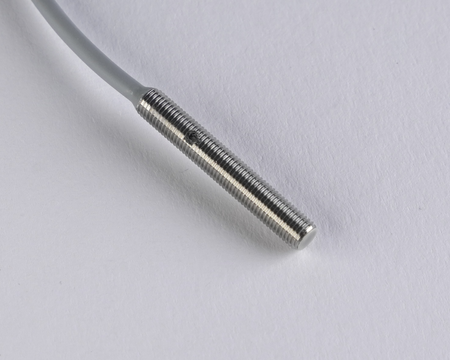

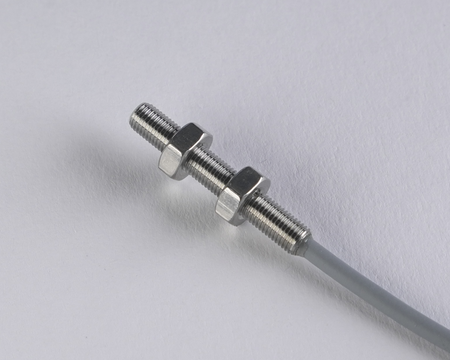

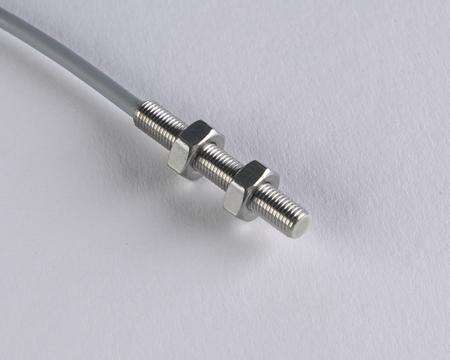

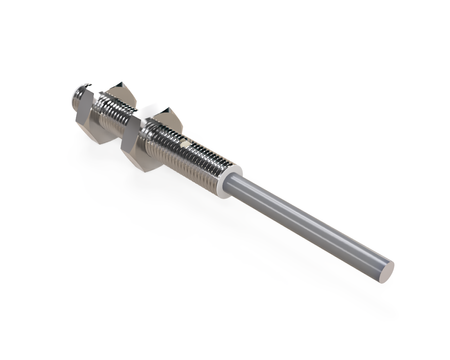

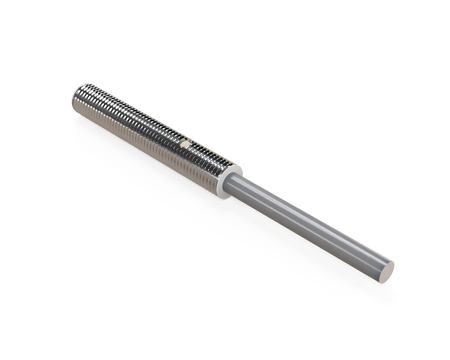

Inductive sensor M4 25 mm cable 2m NPN NO Sn = 0,6 mm

+ Add to compareAdd to shopping list
  • ● M4 25 mm flush, Sn 0.6 mm
  • ● NPN NO, DC 10-30 V
  • ● Cable 2 m, IP67
  • ● Flush version: the face mounts level with the machine metal
Switching distance
Output function
Switching function
Connection type
Cable length
31,59 €
net / 1pcs
Lowest price in 30 days before discount: / pcs
Regular price: / pcs
List price:
You can buy for pts.
of
You can also buy using:
Create a request for quotation
Custom product
Contact the shop staff, in order to estimate time of preparing this product for shipment.
Custom product
Shipment
Free and fast delivery from 9,17 €
30 days for free returns
This product is not available in a stationary store
Safe shopping
After purchase you will receive pts.
Files to download

A compact inductive sensor NIS04001 with a PBT sensing face is a reliable solution for control systems and production lines.

This model is part of the Nexotec miniature series, ideal for operation in limited mounting space. The minimal Ø4 x 25 mm dimensions support applications requiring high mounting precision.

Technical specification:

  • Diameter: M4, solution used in light and precision automation
  • Length: 25 mm, low weight and compact sensor format
  • Sensing range: 0,6 mm
  • Housing: Threaded housing sensor
  • Housing material: Stainless steel, suitable for operation in humidity and contamination
  • Sensing face material: PBT, sensing face material – PBT
  • Mounting: flush mounting
  • Switching function: NO, normally open state at rest
  • Cable length: 2 m
  • Supply voltage: DC 10-30V, commonly used control supply

Applications

  • Application in robotized assembly stations.
  • Application in CNC machines for position control of elements and tools.
  • Use in automation of packaging and sorting processes.
  • Application in integration of industrial automation systems.
  • Detection of position in internal transport systems.

Features and Benefits

  • Signal repeatability in mass production processes
  • Stable operation in CNC machines and automation systems
  • Easy integration with dosing and labeling machines
  • Stable operation in dynamic automation systems
  • Reliable operation in safety and control systems

When to choose this model

  • A good choice for detecting small metal parts in industrial automation.
  • Well suited for projects requiring miniaturization.
  • Well suited for multi-point applications.
  • Chosen for precise small mechanisms.
Other information
Brand
Nexotec
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolandPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolandPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NIS04001
Producer code
5907367800005
Series
NIS04
Warranty
24-month warranty
General information
DiameterMore

The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.

M4
Switching distanceMore

Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.

0,6 mm
Mounting
Mounting Flush
Output function
NPN
Switching function
NO
Electrical data
Operating voltage
10–30 V DC
No load current
<10 mA
Max load current
100mA
Leakage current
<0.01 mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Reverse polarity protection
YES
Overload trip point
120 mA
Voltage drop
<1.5 V
Ripple
<10%
Response time
0.1 ms
Switching frequency
2 kHz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
PBT
LED display
YES

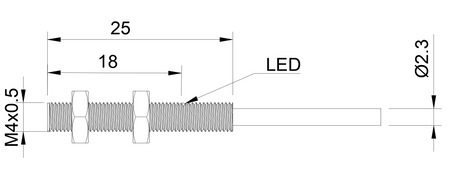

Dimensions
Ø4 x 25 mm
Sensor length
25 mm
Electrical connection
Connection type
Cable
Connector size
n/d
Number of pins
n/d
Number of wires
3
Cable length
2 m
Cable diameter
⌀ 2,3 mm
Cable
3 x 0,15 mm²
Cable material
PUR
Operating conditions
Protection category
IP67
Operating temperature min
-25°C
Operating temperature max
+70°C
Other
Manufacturer code
NIS04001
Condition
New
Packaging condition
Original
Type
Inductive
Net weight
22 g
Weight in kg
0,027
Reduction factor
Fe37 steel
1
Aluminium
0,35 - 0,6
Brass
0,4 - 0,7
Copper
0,25 – 0,5
Stainless steel
0,8 - 1
Cast iron
0,95 - 1
Nickel
0,6 - 0,75
