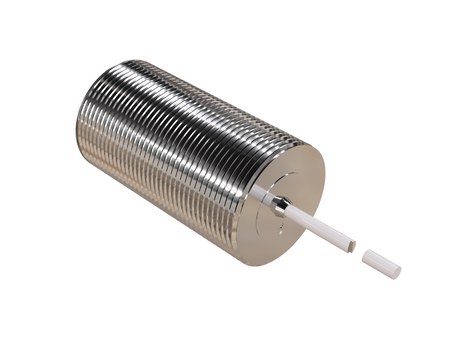

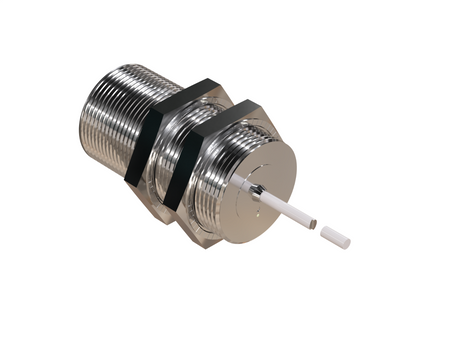

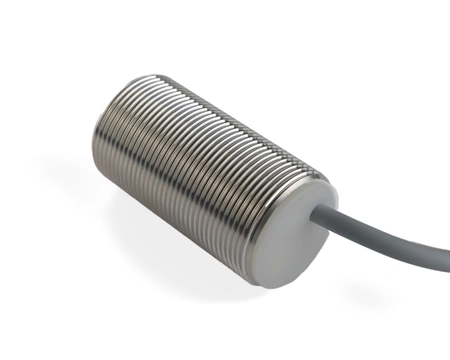

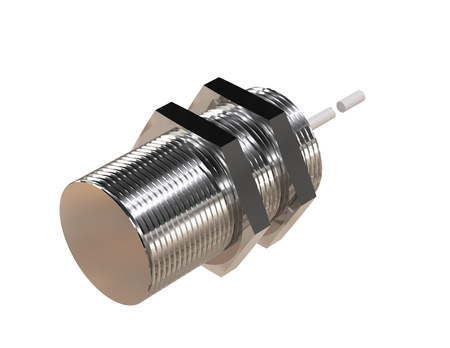

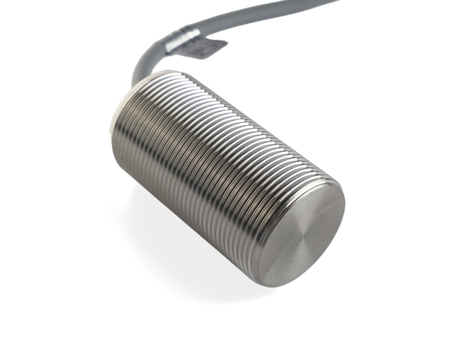

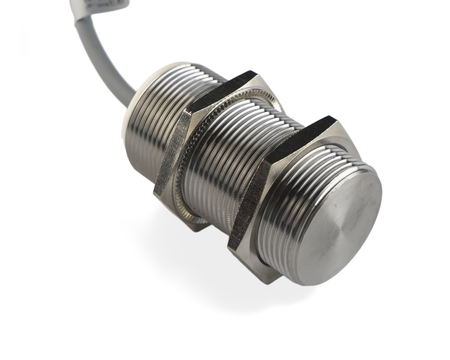

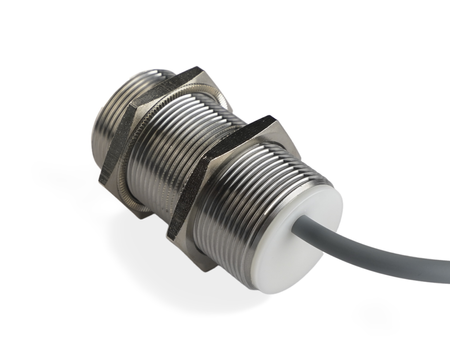

Inductive sensor M30 metal face 55 mm cable 2m NPN NO Sn = 10 mm FE

The professional NMF30001-FE inductive sensor performs well in demanding applications where precise detection of the actual steel part is essential.

This M30 model provides reliability in industrial installations with intensive operation. Thanks to its design, the Ø30 x 55 mm sensor performs excellently in demanding industrial applications and production lines.

Technical specification:

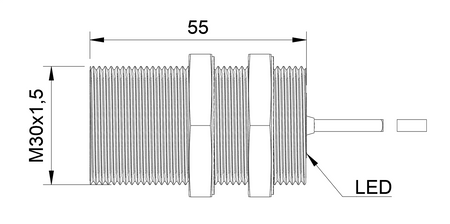

• Diameter: M30, high mechanical and environmental resistance guarantees a long sensor service life
• Length: 55 mm, used in large industrial installations requiring high reliability
• Detection range: 10 mm, repeatable signal activation distance ensures precise detection
• Detected materials: Steel and other ferrous metals (aluminium ignored), material selectivity allows aluminium, brass, copper and other non-ferrous metals present in the detection zone to be completely ignored
• Correction factor K: K = 1 for steel (full, natural sensing range), the actual detection range allows a model to be selected based on the specific distance to the steel part, regardless of the presence of aluminium in the surroundings
• Housing: Threaded, fastening with lock nuts ensures a stable installation
• Housing material: Stainless steel, resistance to aggressive industrial environments and mechanical damage
• Sensor face material: Stainless steel, resistance to corrosion in humid and chemical environments
• Mounting: Flush mounting, stable operating characteristics around metal surroundings
• Switching function: NO, standard operating logic for inductive sensors in industrial automation
• Cable length: 2 m, the absence of a plug-in connector eliminates extra points of potential interference
• Supply voltage: DC 10-30V, standard supply voltage range for industrial sensors

Applications

• Automotive assembly lines – The FE steel detector enables position checking of steel parts on automotive assembly lines, ignoring aluminium components in the surroundings.
• Steel profiles and structures in construction – The FE full-metal inductive sensor ensures stable operation under the demanding conditions of manufacturing steel profiles and structures for the construction industry.
• Presses for stamping and blanking steel – The steel detector is used in presses for stamping and blanking steel components.
• Automatic assembly stations – The FE inductive sensor performs well at automatic assembly stations, checking the presence of steel components before assembly.
• Checking after machining – Applications of the FE proximity sensor include checking steel components after machining, even in an environment containing small aluminium fragments.

Benefits/Features

• K=1 for steel – the K=1 correction factor is the natural reference value for steel, meaning the rated operating distance Sn corresponds to the full, actual detection range.
• Selective part detection – the solution focuses checking on the actual steel component, ignoring aluminium parts located in its surroundings.
• Selectivity of operation – the ability to ignore aluminium, brass and copper allows operation to be focused on the actual steel part.
• For applications with aluminium filings in the surroundings – can be a beneficial solution wherever aluminium filings occur near a steel part and should not be the object of checking.
• A comprehensive solution for steel detection – the full-metal monolithic construction, metal sensing face, K=1, actual range and focus on the actual part together form a solution for demanding industrial applications.

When to choose this model

• For checking components before resistance welding – the contactless sensor enables checking the presence of a part without mechanical contact with its surface.
• For automatic metal presence checking – the metal presence detector can be used to confirm the presence of the actual steel part in the process.
• When you want to check only steel, not other metals – choose a solution designed for the selective detection of a steel part, ignoring other metals in the surroundings.
• For presses and stamping stations – the presence-checking sensor can confirm the presence of a steel part before the working cycle is carried out.
