Inductive sensor M30 Metal face 40 mm cable 3m NPN NO Sn = 13 mm
- ● Cylindrical M30 designed for continuous operation in harsh environments
- ● Threaded M30 housing for mounting in a hole or bracket
- ● Stainless steel housing
- ● Robust housing for long-term use
- ● Cable version – easy connection and servicing
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An industrial automation inductive sensor NMF30331 with a stainless steel face provides stable long-term performance in demanding applications exposed to heat, contamination, and mechanical loads.
The M30 sensor delivers outstanding performance in industrial control systems and manufacturing applications thanks to its robust construction and high resistance to mechanical damage. The large Ø30 x 40 mm diameter provides maximum mounting stability in heavy-duty industrial applications.

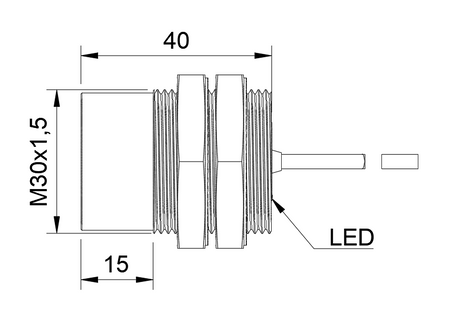

Technical specification:
- Diameter: M30, very large inductive sensor diameter for demanding industrial applications
- Length: 40 mm, easy integration with standard mounting systems and fixtures
- Sensing range: 13 mm
- Housing: Threaded sensor
- Housing material: Stainless steel housing
- Sensor face material: Stainless steel housing
- Mounting: Non-flush mounting, extended sensing range and maximum detection distance
- Switching function: NO, normally open (NO) switching state in idle condition
- Cable length: 3 m
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations in control circuits
Applications
- They are integrated into positioning, synchronization, and industrial automation systems.
- Supports the automation of cutting, milling, and machining processes.
- Integrated into packaging forming and sealing machines.
- Supports synchronization between robots and industrial machines.
- Supports both high-volume production and custom manufacturing applications.
Features & Benefits
- Easy integration with robotic systems and PLC control systems.
- Reliable detection of workpiece and tool positions.
- Stable detection in high-throughput production processes.
- Compatibility with industrial robots and EOAT (End-of-Arm Tooling) systems.
- Reliable performance in safety and control systems.
When to choose this model
- Used in large industrial transport systems requiring reliable and long-lasting metal detection.
- Designed for large production machines with increased requirements for mechanical strength.
- Integrated into large automation lines where mechanical resistance and reliability are critical.
- Used in systems requiring maximum sensing distance and highly durable metal detection.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
