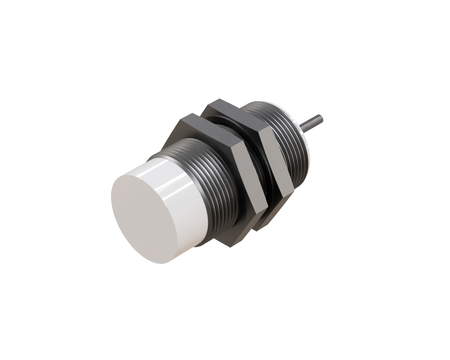

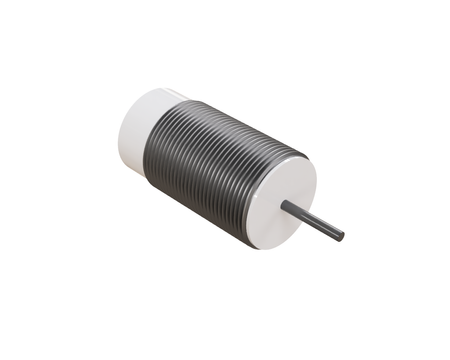

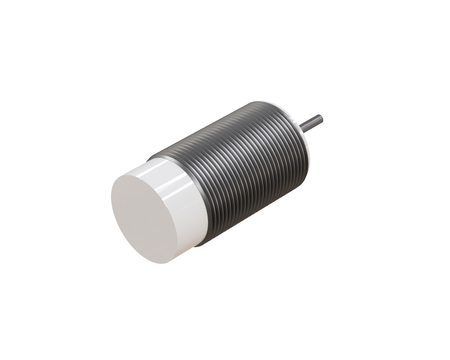

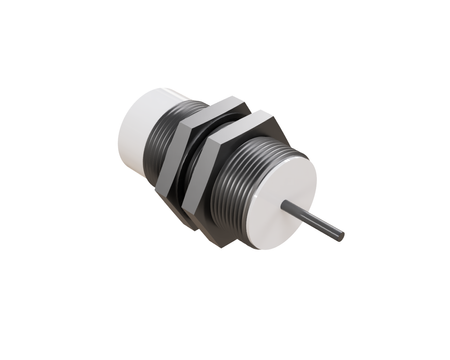

Inductive sensor M30 for welding process 55 mm cable 2m PNP NO Sn = 15 mm

The NWI30013 inductive sensor for welding robots is a robust component of modern automation systems, delivering stable performance in Heavy Duty applications.

The M30 size delivers the maximum detection range in this product line, useful for large resistance-welded structures, Ø30 x 55 mm is a format well matched to the typical mounting brackets used at welding stations.

Technical specification:

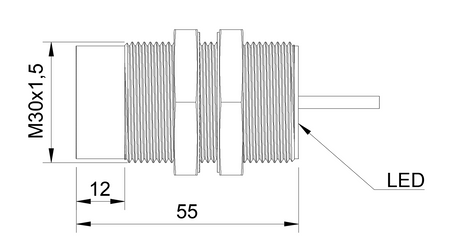

• Diameter: M30, a rugged construction built for the most demanding resistance-welding stations
• Length: 55 mm, a longer sensor body that allows mounting further away from the hottest zone of the weld
• Detection range: 15 mm, repeatable detection of metal parts regardless of the interference generated during welding
• Housing: Threaded, a threaded housing allows precise adjustment of the sensor's position relative to the weld point
• Housing material: Brass with PTFE coating, a PTFE layer on the brass housing reduces weld spatter sticking to the sensor's surface
• Sensor face material: PTFE, a PTFE sensing face prevents metal spatter from welding and resistance welding from sticking
• Mounting: Non-flush mounting, the non-flush version makes use of the full detection range, useful with larger welded parts
• Switching function: normally open (NO), the NO function simplifies integration with most existing resistance-welding machine control systems
• Output type: PNP, the PNP output type simplifies integration with the safety modules of resistance-welding robots
• Connection: with a 2 m cable, a cable resistant to the vibration and frequent movement typical of welding robots
• Supply voltage: DC 10-30V, a typical industrial automation supply voltage, with no need for additional converters
• Electromagnetic interference (EMC) resistance: yes, a stable output signal even in the immediate vicinity of the strong electromagnetic fields present during welding
• Catalog number: W1CN-M3015P-O3U2

Applications

• It belongs to the class of welding cell sensors and inductive sensors for welding cells, used in the enclosed working zones of robots.
• It is an excellent fit for welding stations and automated welding stations, where repeatable, downtime-free operation is required.
• It is used in welding machines and as an inductive sensor for welding machines, monitoring the position and presence of parts.
• It is used in welding robots as an inductive sensor for welding robots, ensuring reliable detection throughout the work cycle.
• It performs well in robotic welding stations and automated welding lines, where every stoppage carries a real cost.

Benefits/Features

• Designed to operate in a welding environment, it maintains stable parameters despite harsh ambient conditions.
• It performs well in harsh welding conditions, including elevated temperatures and heavy dust in the work zone.
• As an inductive sensor for harsh industrial conditions, it maintains repeatable detection even under intensive use.
• Resistance to harsh operating conditions allows mounting close to the weld point without compromising reliability.
• A construction resistant to harsh industrial conditions ensures stable operation across continuous, multi-shift cycles.

When to choose this model

• When the welding process requires non-contact detection of part presence.
• When a standard sensor might be exposed to the electromagnetic interference generated during welding.
• If the application requires checking that a part is correctly positioned before resistance welding.
• When you need an inductive sensor for a welding robot operating in a demanding environment.
