Inductive sensor M30 78 mm connector M12 PNP NO Sn = 25 mm
Inductive sensor M30 78 mm connector M12 PNP NO Sn = 25 mm
Inductive sensor M30 78 mm connector M12 PNP NO Sn = 25 mm
Inductive sensor M30 78 mm connector M12 PNP NO Sn = 25 mm
Inductive sensor M30 78 mm connector M12 PNP NO Sn = 25 mm
Inductive sensor M30 78 mm connector M12 PNP NO Sn = 25 mm
Inductive sensor M30 78 mm connector M12 PNP NO Sn = 25 mm
Inductive sensor M30 78 mm connector M12 PNP NO Sn = 25 mm

Inductive sensor M30 78 mm connector M12 PNP NO Sn = 25 mm

+ Add to compareAdd to shopping list
  • NIS30463
Switching distance
Mounting
Output function
Switching function
Sensor length
Size
one size
46,69 €
net / pcs
Lowest price in 30 days before discount: / pcs
Regular price: / pcs
of
You can also buy using:
Custom product
Custom product
Free and fast delivery
30 days for free returns
Safe shopping
Brand
Nexotec
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
Address: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Symbol
NIS30463
General information
DiameterMore

The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.

M30
Switching distance
25 mm
Mounting
Semi-Flush mounting
Output function
PNP
Switching function
NO
Response time
1ms
Switching frequency
150Hz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Electrical data
Operating voltage
DC 10-30V
No load current
<10mA
Max load current
200mA
Leakage current
<0.01mA
Repeat accuracy
<1.0%sr
Overload trip point
220mA
Voltage drop
<1,5V
Ripple
<10%
Mechanical data
Housing shape
Threaded
Housing material
Nickel-plated brass
Material active face
PBT
LED display
TAK

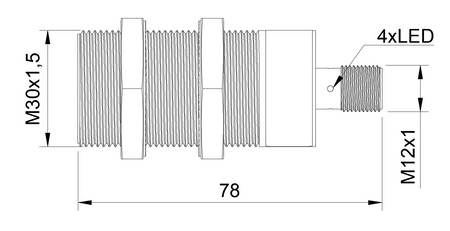

Dimensions
Ø30 x 78 mm
Sensor length
78 mm
Electrical connection
Connection type
Connector
Connector size
M12
Cable length
n/d
Short-circuit protection
TAK
Operating conditions
Protection category
IP67
Operating temperature min
-25℃
Operating temperature max
+70℃
