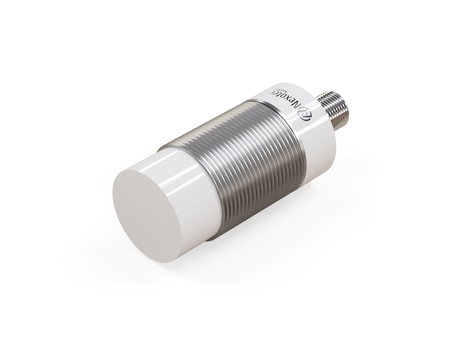

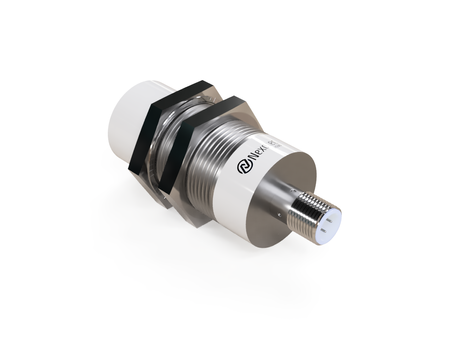

Inductive sensor M30 78 mm connector M12 PNP NO & NC Sn = 40 mm
- ● Large M30 provides flexibility in embedding
- ● Housing for larger industrial installations
- ● Sensor for long-range detection
- ● Plug-in – ready for standard installations
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An advanced inductive sensor NIS30456 with a PBT sensing face supports the efficient operation of industrial machines and equipment.
The M30 model represents a line of sensors for heavy-duty applications. The large Ø30 x 78 mm size allows use in applications requiring greater mounting reliability.
Technical specification:

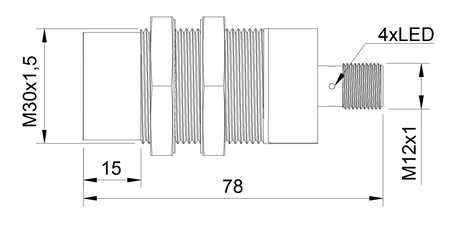

- Diameter: M30, high mechanical and environmental resistance
- Length: 78 mm, used in large industrial installations
- Sensing range: 40 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, smooth surface for easier operation
- Sensing face material: PBT,
- Mounting: non-flush mounting
- Switching function: NO & NC
- Cable length: n/d
- Supply voltage: DC 10-30V, commonly used control supply
Applications
- Operation in demanding industrial automotive environments.
- Application in tool change and positioning systems.
- Support for automatic packaging systems.
- Detection of elements in robotic work zones.
- Position detection in special-purpose machines.
Features and Benefits
- Precise detection of metal components in assembly processes
- High detection precision in machining environments
- Stable operation in high-duty cycle machines
When to choose this model
- Used in applications requiring maximum detection range.
- Suitable for mining and heavy industry.
- Ensures reliable detection of large objects.
- Suitable for extremely demanding applications.
Connection
The sensor has two outputs, NO and NC, on separate pins (NO on pin 4, NC on pin 2), so connect it with an M12 4-pin connection cable without LEDs, which brings out both pins separately. In cables with LEDs (NXOC12281…, NXOC12401…) pins 2 and 4 are joined inside the connector, so they are not suitable for sensors with two outputs.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
