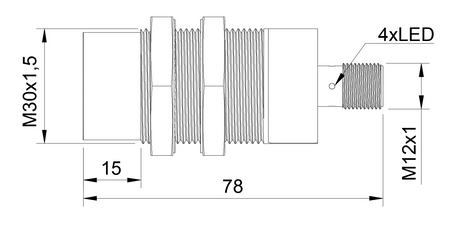

Inductive sensor M30 78 mm connector M12 PNP NO & NC Sn = 25 mm
- ● Large M30 provides flexibility in embedding
- ● Housing for extensive workspaces
- ● Sn distance for long-distance detection
- ● Plug-in – splash- and water-resistant
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

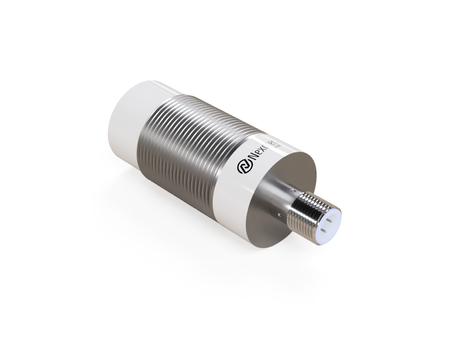

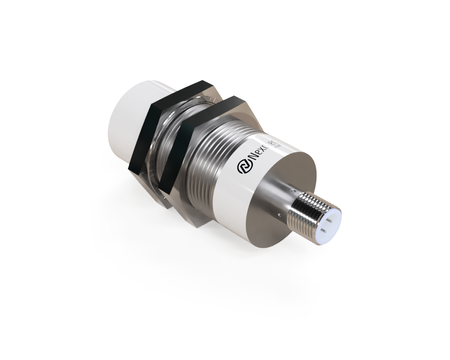

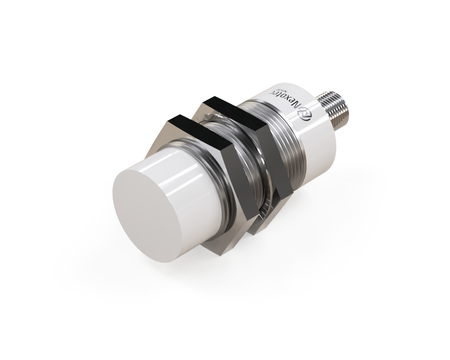

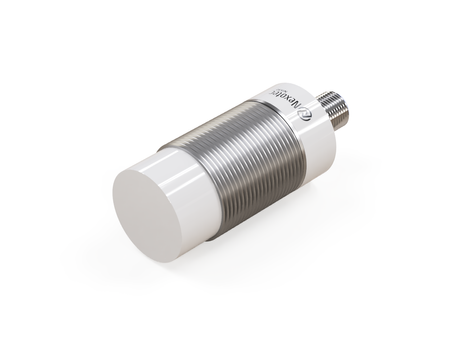

An inductive sensor NIS30436 with a PBT sensing face is distinguished by its durability and high-quality construction.
The M30 version was designed for automation systems requiring high durability. The larger Ø30 x 78 mm housing provides better transfer of mounting loads.
Technical specification:
- Diameter: M30, maximum detection range in this design class
- Length: 78 mm, designed for demanding operating conditions
- Sensing range: 25 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, used in standard industrial applications
- Sensing face material: PBT, sensing face material – PBT
- Mounting: non-flush mounting
- Switching function: NO & NC
- Cable length: n/d
- Supply voltage: DC 10-30V, stable operation in DC automation
Applications
- Application in robotized assembly stations.
- Application in CNC machines for position control of elements and tools.
- Application in packaging transport systems.
- Application in integration of industrial automation systems.
- Application in OEM machine automation.
Features and Benefits
- Stable operation in high-dynamic cycle environments
- Resistance to frequent cycles and micro-vibrations
When to choose this model
- Used for detecting large metal components.
- Performs well in high-vibration environments.
- Suitable for very demanding applications.
- Ensures long-term operational stability.
Connection
The sensor has two outputs, NO and NC, on separate pins (NO on pin 4, NC on pin 2), so connect it with an M12 4-pin connection cable without LEDs, which brings out both pins separately. In cables with LEDs (NXOC12281…, NXOC12401…) pins 2 and 4 are joined inside the connector, so they are not suitable for sensors with two outputs.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
