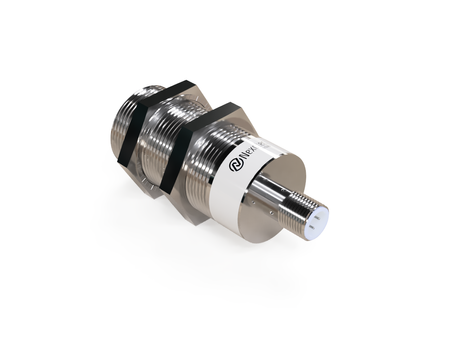

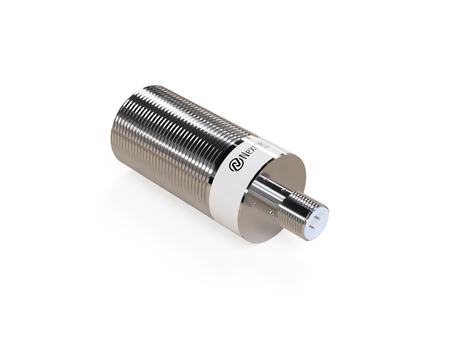

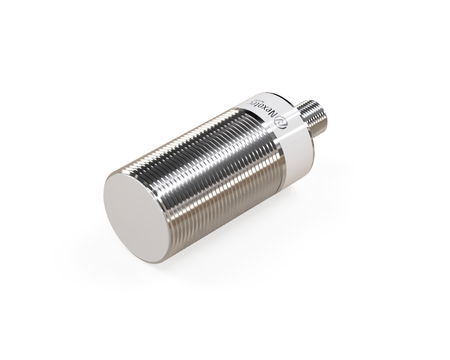

Inductive sensor M30 78 mm connector M12 PNP NO & NC Sn = 22 mm
- ● M30 for large automation systems
- ● Modular housing for wide panels
- ● Sensor with extended range for long-distance detection
- ● Plug-in – solid and reliable construction
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS30446 with a PBT sensing face ensures reliable operation in automation and process control systems.

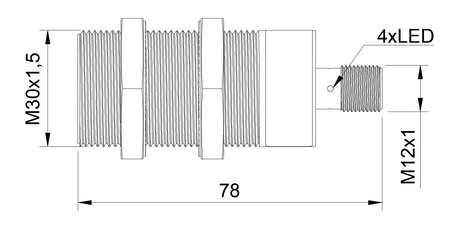

The M30 industrial sensor is distinguished by a solid construction and wide application range. The Ø30 x 78 mm housing enables stable operation in environments with high mechanical dynamics.
Technical specification:
- Diameter: M30, maximum detection range in this design class
- Length: 78 mm, designed for demanding operating conditions
- Sensing range: 22 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, stable mechanical properties of the material
- Sensing face material: PBT, sensing face material – PBT
- Mounting: Flush mounting
- Switching function: NO & NC
- Cable length: n/d
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Monitoring of component presence in production transport systems.
- Application in tool change and positioning systems.
- Support for automatic packaging systems.
- Use in automation of pick & place processes.
- Use in actuator and mechanism control systems.
Features and Benefits
- Precise detection of metal components in assembly processes
- Reliable detection of workpiece and tool positions
- Reliable operation in automated packaging systems
- Stable operation in high-duty cycle machines
When to choose this model
- Ensures highest mechanical resistance.
- Suitable for mining and heavy industry.
- Used in large automation lines.
- Ensures long-term operational stability.
Connection
The sensor has two outputs, NO and NC, on separate pins (NO on pin 4, NC on pin 2), so connect it with an M12 4-pin connection cable without LEDs, which brings out both pins separately. In cables with LEDs (NXOC12281…, NXOC12401…) pins 2 and 4 are joined inside the connector, so they are not suitable for sensors with two outputs.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
