Inductive sensor M30 78 mm connector M12 PNP NO & NC Sn = 15 mm
- ● M30 version for larger applications
- ● Extended module for extensive assemblies
- ● Effective sensing zone under everyday conditions
- ● Plug-in – performs well in demanding conditions
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A compact inductive sensor NIS30416 with a PBT sensing face is a reliable solution for control systems and production lines.
The M30 inductive sensor is an efficient solution for industrial automation requiring long sensing range. The larger Ø30 x 78 mm diameter results in higher resistance to displacement and vibration.
Technical specification:

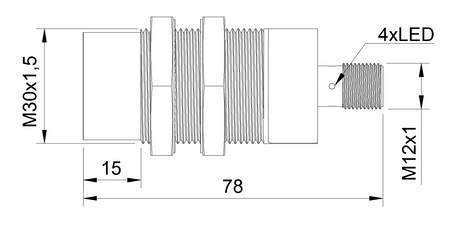

- Diameter: M30, maximum detection range in this design class
- Length: 78 mm, larger mounting surface for thread connection
- Sensing range: 15 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, smooth surface for easier operation
- Sensing face material: PBT, sensing face material – PBT
- Mounting: non-flush mounting
- Switching function: NO & NC
- Cable length: n/d
- Supply voltage: DC 10-30V, compatible with PLC systems
Applications
- Use in positioning and production synchronization systems.
- Detection of workpieces before machining operations.
- Application in forming and sealing machines.
- Operation in modern production robotization systems.
- Position detection in special-purpose machines.
Features and Benefits
- Stable operation in high-dynamic cycle environments
- High detection precision in machining environments
- Easy integration with dosing and labeling machines
- Compatibility with industrial robots and EOAT systems
- Long service life in continuous operation
When to choose this model
- Used in large transport systems.
- Used in high-performance systems.
- Ensures reliable detection of large objects.
- Used in continuous production.
Connection
The sensor has two outputs, NO and NC, on separate pins (NO on pin 4, NC on pin 2), so connect it with an M12 4-pin connection cable without LEDs, which brings out both pins separately. In cables with LEDs (NXOC12281…, NXOC12401…) pins 2 and 4 are joined inside the connector, so they are not suitable for sensors with two outputs.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
