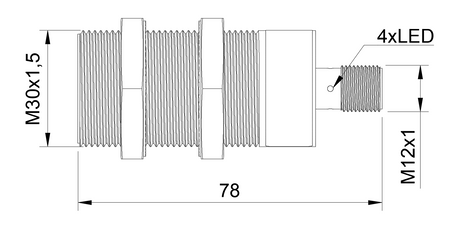

Inductive sensor M30 78 mm connector M12 PNP NC Sn = 22 mm
- ● Maximum-diameter M30 provides ample mounting space
- ● For applications requiring more space
- ● Sn distance with extended sensing zone
- ● Plug-in – ideal for industrial applications
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A modern inductive sensor NIS30444 with a PBT sensing face provides a long service life in demanding industrial environments.
The M30 industrial sensor is distinguished by a solid construction and wide application range. The Ø30 x 78 mm design increases resistance to mechanical and operational stresses.
Technical specification:
- Diameter: M30, high mechanical and environmental resistance
- Length: 78 mm, used in large industrial installations
- Sensing range: 22 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, stable mechanical properties of the material
- Sensing face material: PBT,
- Mounting: Flush mounting
- Switching function: NC, signal continuity monitoring
- Cable length: n/d
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Quality and presence control of elements in production processes.
- Use in automation of cutting and milling processes.
- Use in automation of packaging and sorting processes.
- Support for synchronization of robots and machines.
- Use in mass and custom production systems.
Features and Benefits
- Precise detection of metal components in assembly processes
- High detection precision in machining environments
- High response speed in packaging lines
- Fast detection in pick & place processes
- Reliable operation in safety and control systems
When to choose this model
- Used in high-load applications.
- Used in 24/7 installations.
- Used in heavy-duty OEM systems.
- Used in continuous production.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
