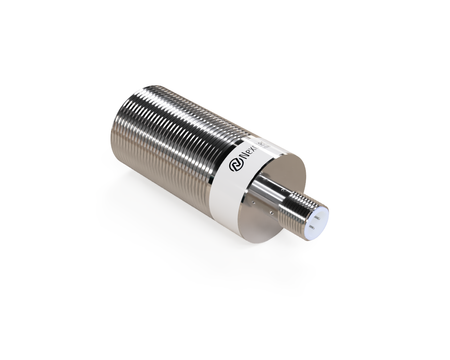

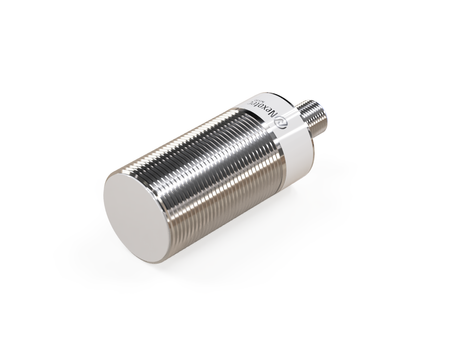

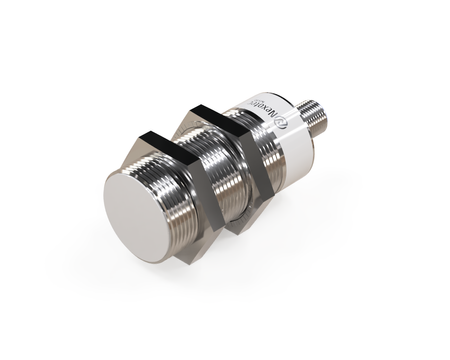

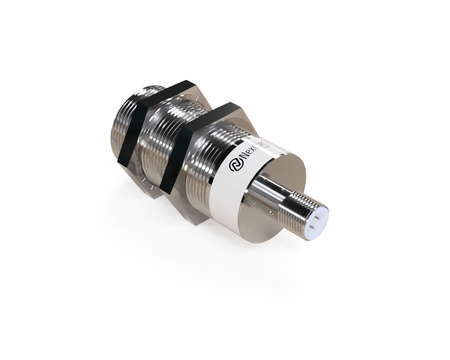

Inductive sensor M30 78 mm connector M12 PNP NC Sn = 16 mm
- ● Large M30 simplifies component placement
- ● Housing for extensive workspaces
- ● Sn distance for long-distance detection
- ● Plug-in – ideal for industrial applications
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An advanced inductive sensor NIS30424 with a PBT sensing face supports the efficient operation of industrial machines and equipment.

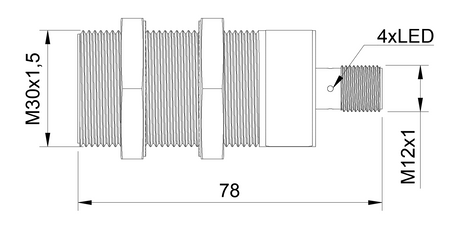

The M30 model is part of a line of sensors designed for harsh production environments. The Ø30 x 78 mm format is designed for operation in demanding, high-load conditions.
Technical specification:
- Diameter: M30, maximum detection range in this design class
- Length: 78 mm, designed for demanding operating conditions
- Sensing range: 16 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, smooth surface for easier operation
- Sensing face material: PBT,
- Mounting: Flush mounting
- Switching function: NC, continuous signal monitoring in circuit
- Cable length: n/d
- Supply voltage: DC 10-30V, stable operation in DC automation
Applications
- Application in production lines of automotive components for detecting the presence of metal elements.
- Detection of workpieces in machining fixtures.
- Application in packaging lines for product presence detection.
- Position control of grippers and robotic actuators.
- Use in mass and custom production systems.
Features and Benefits
- Stable operation in high-dynamic cycle environments
- Resistance to coolants, oils and industrial contaminants
- Resistance to intensive cyclic operation
- Fast detection in pick & place processes
- Stable operation in high-duty cycle machines
When to choose this model
- Used for detecting large metal components.
- Used in 24/7 installations.
- Used in large automation lines.
- Used in heavy industrial lines.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
