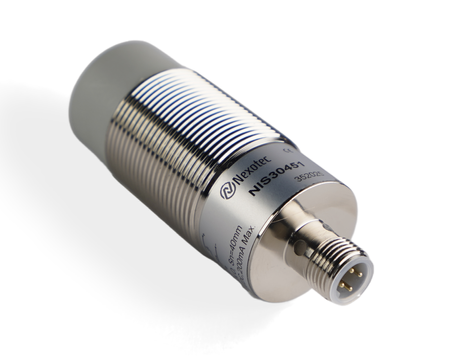

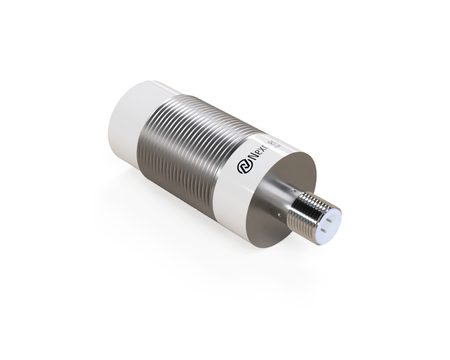

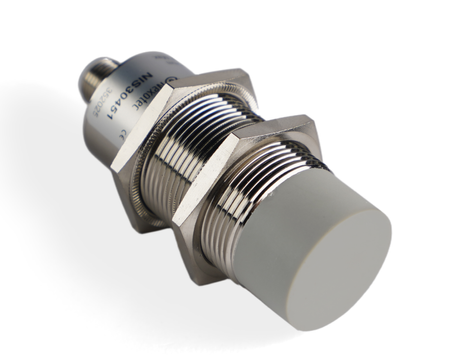

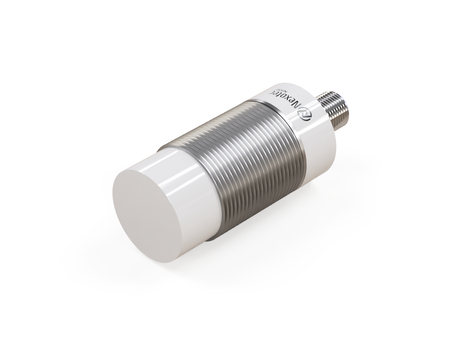

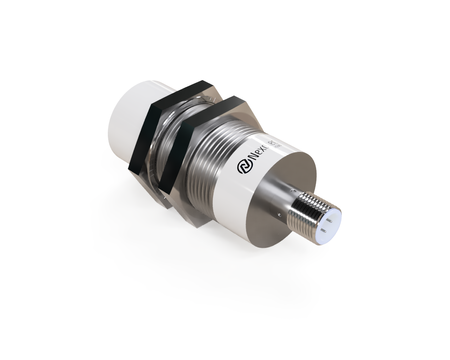

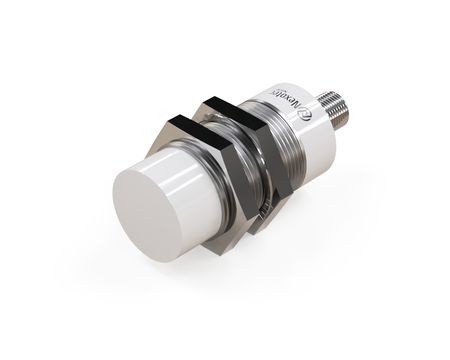

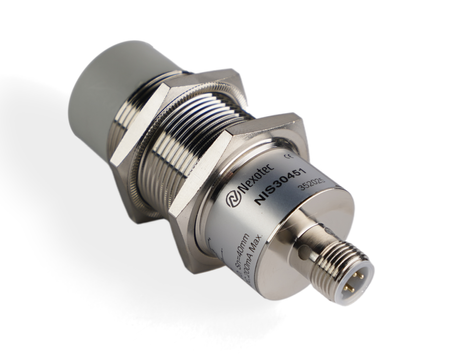

Inductive sensor M30 78 mm connector M12 NPN NO Sn = 40 mm
- ● M30 provides comfortable layout in large systems
- ● Extended version for stable embedding
- ● Sensor with wide operating range
- ● Plug-in – durable for everyday use
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An advanced inductive sensor NIS30451 with a PBT sensing face supports the efficient operation of industrial machines and equipment.
The M30 inductive sensor is a key component of industrial automation systems. The Ø30 x 78 mm format supports applications in heavy industry and large production systems.
Technical specification:
- Diameter: M30, designed for heavy industry
- Length: 78 mm, designed for demanding operating conditions
- Sensing range: 40 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, used in standard industrial applications
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: non-flush mounting
- Switching function: NO, signal generated upon metal detection
- Cable length: n/d
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Monitoring of component presence in production transport systems.
- Application in material feeding and unloading systems.
- Control of labeling and dosing machines.
- Operation in modern production robotization systems.
- Control of processes in complex mechanical systems.
Features and Benefits
- Easy integration with robotic and PLC systems
- Fast response in dynamic machining processes
- Precise synchronization of production processes
- High precision positioning of elements in robotic systems
- Long service life in continuous operation
When to choose this model
- Ensures highest mechanical resistance.
- Used in large production machines.
- Suitable for harsh operating conditions.
- Suitable for extremely demanding applications.
Connection
The sensor has an NPN output, so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) have a yellow status LED wired for a PNP output and are not suitable for NPN sensors.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
This product is covered by a 24-month warranty from the date of purchase. Claims can be submitted via the complaint form in our shop. Your statutory rights are not affected by this warranty.
