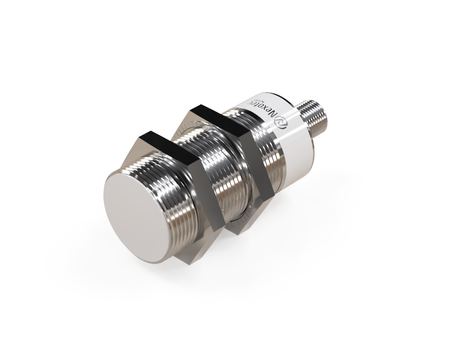

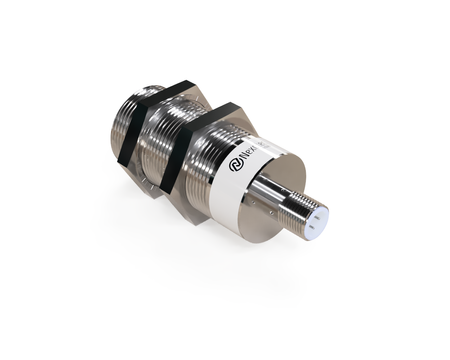

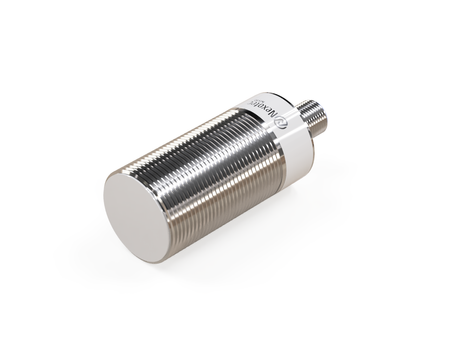

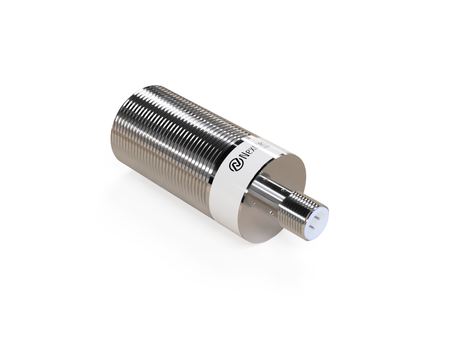

Inductive sensor M30 78 mm connector M12 NPN NO Sn = 25 mm
- ● M30 provides comfortable layout in large systems
- ● Longer module for expanded systems
- ● Sensor for remote installations
- ● Plug-in – nickel-plated brass housing
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS30461 with a PBT sensing face ensures reliable operation in automation and process control systems.

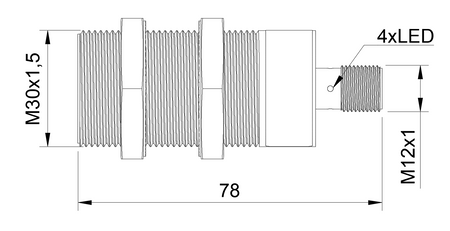

The M30 model is part of a line of sensors designed for harsh production environments. Ø30 x 78 mm sensors provide solid fixing in large mounting holes.
Technical specification:
- Diameter: M30, maximum detection range in this design class
- Length: 78 mm, used in large industrial installations
- Sensing range: 25 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, good protection against standard corrosion
- Sensing face material: PBT,
- Mounting: Flush mounting
- Switching function: NO, used in typical control applications
- Cable length: n/d
- Supply voltage: DC 10-30V, stable operation in DC automation
Applications
- Monitoring of component presence in production transport systems.
- Detection of workpieces before machining operations.
- Application in forming and sealing machines.
- Application in integration of industrial automation systems.
- Support for high-duty cycle equipment operation.
Features and Benefits
- High reliability in automated automotive production lines
- Fast response in dynamic machining processes
- Easy integration with dosing and labeling machines
- Compatibility with industrial robots and EOAT systems
- Resistance to electromagnetic interference
When to choose this model
- Suitable for heavy industry and large installations.
- Used in large production machines.
- Ensures reliable detection of large objects.
- Ensures long-term operational stability.
Connection
The sensor has an NPN output, so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) have a yellow status LED wired for a PNP output and are not suitable for NPN sensors.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
