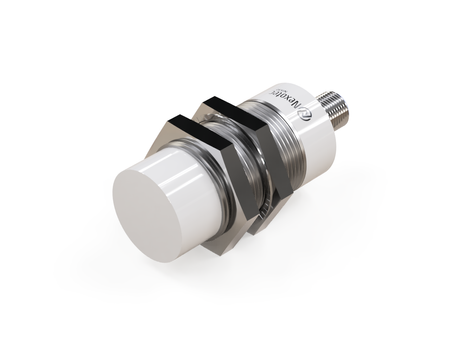

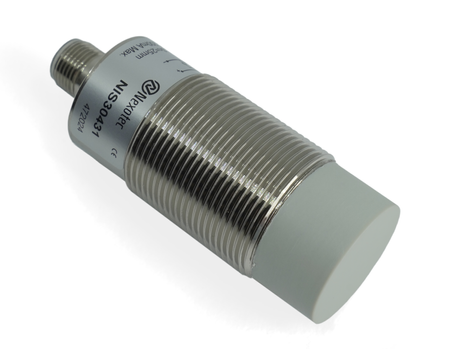

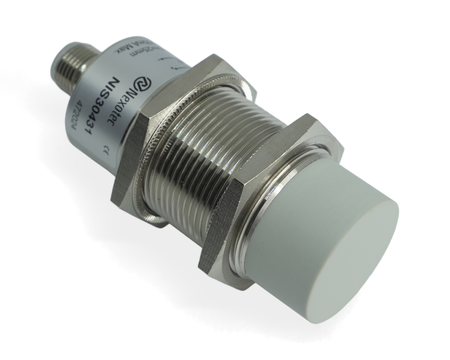

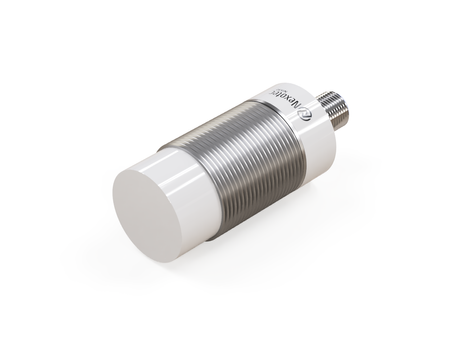

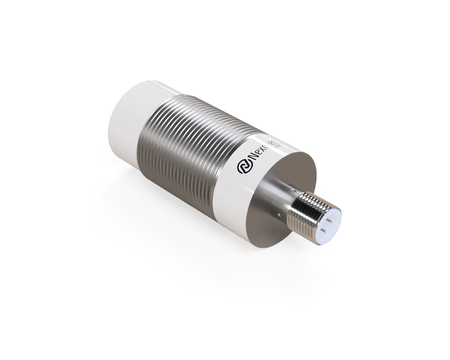

Inductive sensor M30 78 mm connector M12 NPN NO Sn = 25 mm
- ● M30 enables efficient component layout
- ● Longer design for larger automation systems
- ● Sensor for long-range detection
- ● Plug-in – ready for standard installations
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS30431 with a PBT sensing face is a modern industrial automation component that ensures stable operation and high wear resistance.
This M30 variant is a solution for applications requiring maximum durability. The Ø30 x 78 mm sensor is a solution for applications where maximum mounting durability is key.
Technical specification:

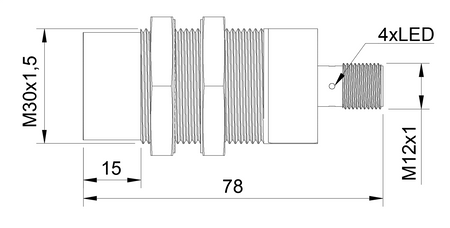

- Diameter: M30, maximum detection range in this design class
- Length: 78 mm, designed for demanding operating conditions
- Sensing range: 25 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, used in standard industrial applications
- Sensing face material: PBT,
- Mounting: non-flush mounting
- Switching function: NO, used in typical control applications
- Cable length: n/d
- Supply voltage: DC 10-30V, commonly used control supply
Applications
- Application in robotized assembly stations.
- Monitoring of processes in machining centers.
- Control of labeling and dosing machines.
- Position control of grippers and robotic actuators.
- Use in actuator and mechanism control systems.
Features and Benefits
- Precise detection of metal components in assembly processes
- Resistance to coolants, oils and industrial contaminants
- Stable detection in high-throughput processes
- High resistance to harsh industrial conditions
When to choose this model
- Used in high-load applications.
- Performs well in high-vibration environments.
- Used in large-scale industrial installations.
- Ensures long-term operational stability.
Connection
The sensor has an NPN output, so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) have a yellow status LED wired for a PNP output and are not suitable for NPN sensors.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
This product is covered by a 24-month warranty from the date of purchase. Claims can be submitted via the complaint form in our shop. Your statutory rights are not affected by this warranty.
