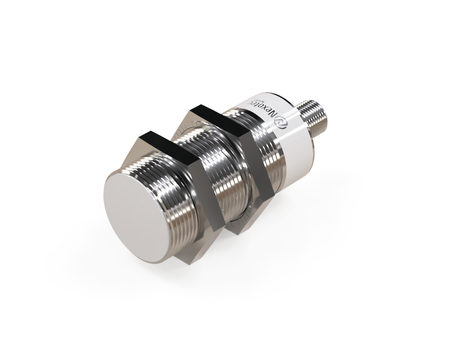

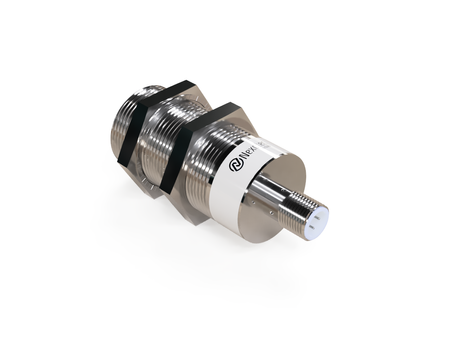

Inductive sensor M30 78 mm connector M12 NPN NO Sn = 22 mm
- ● Larger-diameter M30 increases mounting flexibility
- ● Housing for extensive workspaces
- ● Sensor with high operating range
- ● Plug-in – fast connection and maintenance
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A durable inductive sensor NIS30441 with a PBT sensing face is widely used in modern industrial installations.
The M30 model belongs to a series of sensors designed for operation in heavy industrial conditions. The larger Ø30 x 78 mm diameter results in higher resistance to displacement and vibration.
Technical specification:
- Diameter: M30, designed for heavy industry
- Length: 78 mm, designed for demanding operating conditions
- Sensing range: 22 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, good protection against standard corrosion
- Sensing face material: PBT, sensing face material – PBT
- Mounting: Flush mounting
- Switching function: NO, signal generated upon metal detection
- Cable length: n/d
- Supply voltage: DC 10-30V, stable operation in DC automation
Applications
- Detection of elements in automated vehicle production systems.
- Application in CNC machines for position control of elements and tools.
- Application in forming and sealing machines.
- Use in automatic assembly systems.
- Application in machine safety and interlock systems.
Features and Benefits
- Easy integration with robotic and PLC systems
- Reliable operation in automated packaging systems
- Versatile use in different OEM machine types
When to choose this model
- Used in large transport systems.
- Ensures maximum durability.
- Ensures reliable detection of large objects.
- Used in continuous production.
Connection
The sensor has an NPN output, so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) have a yellow status LED wired for a PNP output and are not suitable for NPN sensors.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
This product is covered by a 24-month warranty from the date of purchase. Claims can be submitted via the complaint form in our shop. Your statutory rights are not affected by this warranty.
