Inductive sensor M30 78 mm connector M12 NPN NO Sn = 16 mm
- ● Maximum-diameter M30 provides ample mounting space
- ● Extended module for extensive assemblies
- ● Sensor for long-range detection
- ● Plug-in – simple installation in machinery
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

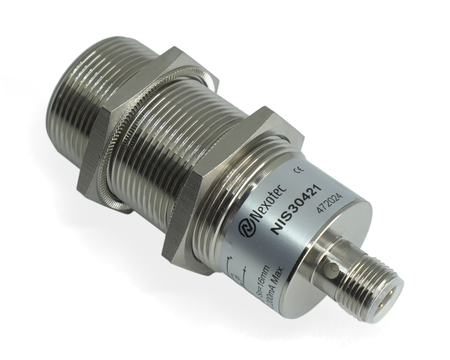

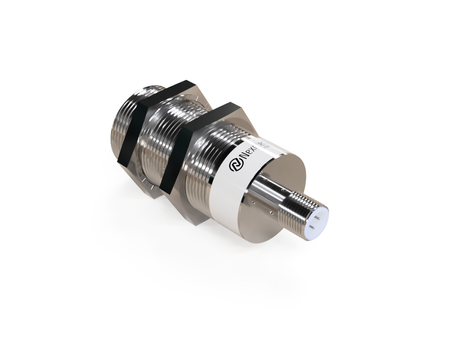

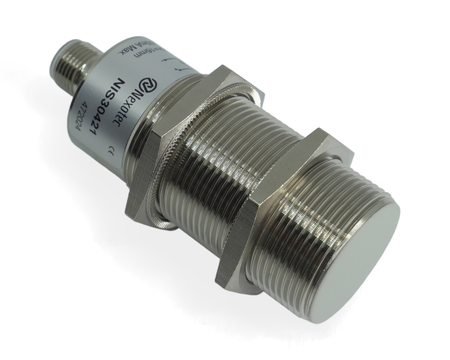

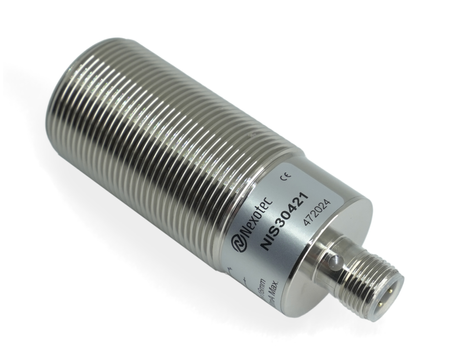

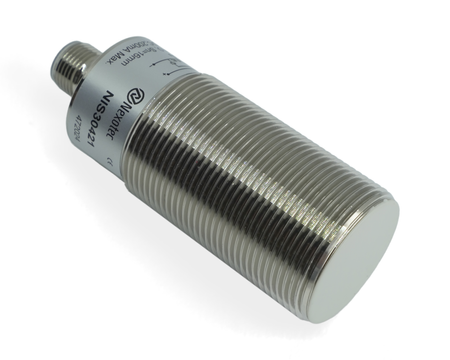

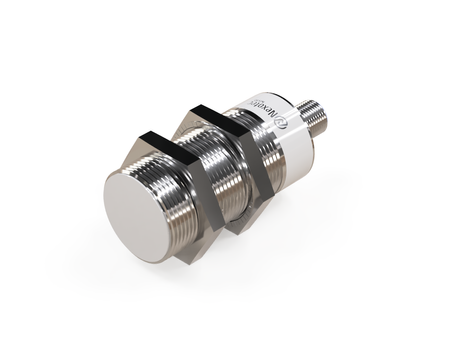

An inductive sensor NIS30421 for industrial automation with a PBT sensing face provides stable and long-lasting performance.
The M30 version was designed for automation systems requiring high durability. The Ø30 x 78 mm format supports applications in heavy industry and large production systems.
Technical specification:
- Diameter: M30, stable operation at long sensing distances

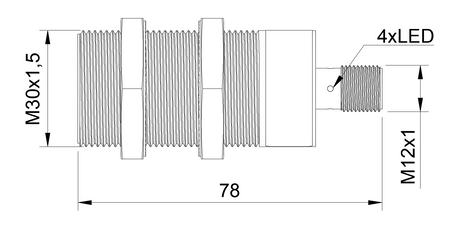

- Length: 78 mm, larger mounting surface for thread connection
- Sensing range: 16 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, smooth surface for easier operation
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: Flush mounting
- Switching function: NO, used in typical control applications
- Cable length: n/d
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Position control of parts in automotive assembly lines.
- Application in CNC machines for position control of elements and tools.
- Detection of metal elements and components in packaging systems.
- Detection of elements in robotic work zones.
- Operation in demanding industrial high-reliability environments.
Features and Benefits
- Precise detection of metal components in assembly processes
- Stable operation in CNC machines and automation systems
- Easy integration with dosing and labeling machines
- Fast detection in pick & place processes
- High resistance to harsh industrial conditions
When to choose this model
- Suitable for heavy industry and large installations.
- Ensures very stable detection.
- Suitable for very demanding applications.
- Used in continuous production.
Connection
The sensor has an NPN output, so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) have a yellow status LED wired for a PNP output and are not suitable for NPN sensors.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
