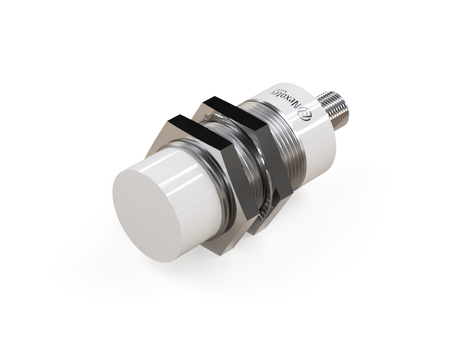

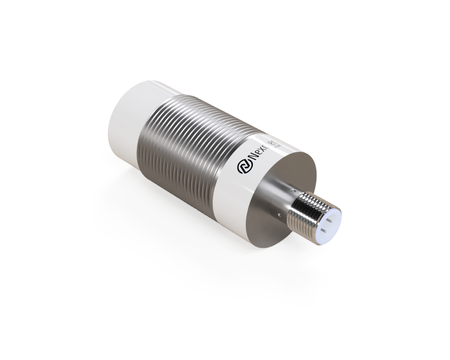

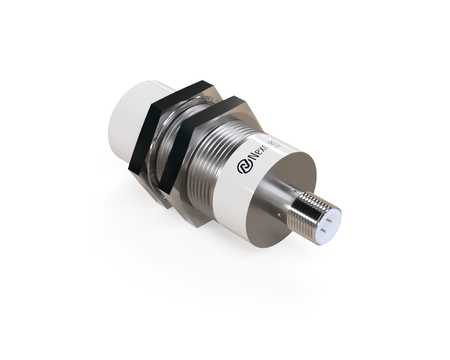

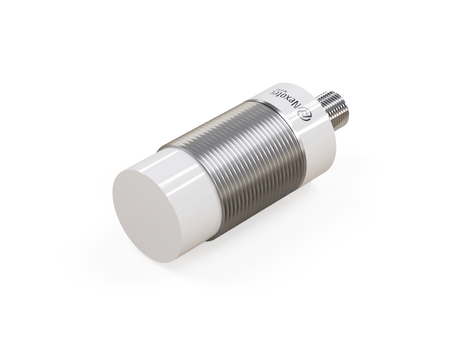

Inductive sensor M30 78 mm connector M12 NPN NO & NC Sn = 25 mm
- ● Maximum-diameter M30 provides ample mounting space
- ● Extended housing for large installations
- ● Sensor with extended detection field
- ● Plug-in – IP67: dust-tight and protected against immersion in water
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS30435 with a PBT sensing face is an efficient solution for production systems and control circuits.

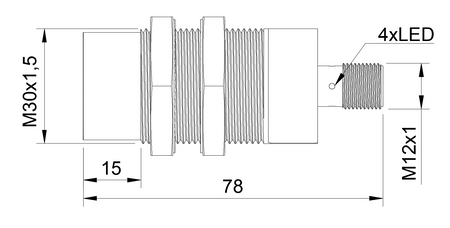

The M30 sensor ensures continuous operation in monitoring and control systems. Ø30 x 78 mm sensors provide solid fixing in large mounting holes.
Technical specification:
- Diameter: M30, maximum detection range in this design class
- Length: 78 mm, better resistance to vibration and stress
- Sensing range: 25 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, used in standard industrial applications
- Sensing face material: PBT,
- Mounting: non-flush mounting
- Switching function: NO & NC
- Cable length: n/d
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Operation in demanding industrial automotive environments.
- Operation in high-dynamics industrial environments.
- Detection of product position in packaging processes.
- Position control of grippers and robotic actuators.
- Operation in demanding industrial high-reliability environments.
Features and Benefits
- Stable operation in high-dynamic cycle environments
- Reliable synchronization of machines and robots
- Versatile use in different OEM machine types
When to choose this model
- Used in large transport systems.
- Ensures maximum durability.
- Suitable for very demanding applications.
- Suitable for the most demanding environments.
Connection
The sensor has two NPN outputs, NO and NC, on separate pins (NO on pin 4, NC on pin 2), so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) indicate the state of a PNP output and have pins 2 and 4 joined inside the connector, so they are not suitable for this sensor.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
