Inductive sensor M30 78 mm connector M12 NPN NO & NC Sn = 22 mm
- ● Large M30 simplifies component placement
- ● Long design for wide systems
- ● Sensor for long-range applications
- ● Plug-in – convenient installation and operation
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An industrial inductive sensor NIS30445 with a PBT sensing face combines a compact design with high durability.

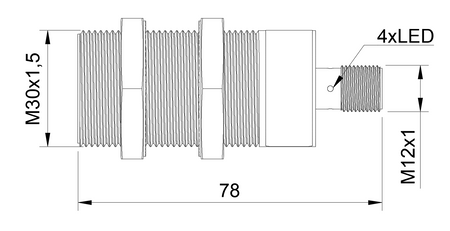

The M30 industrial sensor is distinguished by a solid construction and wide application range. Ø30 x 78 mm sensors offer a high level of stability in environments subject to heavy overloads.
Technical specification:
- Diameter: M30, designed for heavy industry
- Length: 78 mm, better resistance to vibration and stress
- Sensing range: 22 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, stable mechanical properties of the material
- Sensing face material: PBT,
- Mounting: Flush mounting
- Switching function: NO & NC
- Cable length: n/d
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Quality and presence control of elements in production processes.
- Application in CNC machines for position control of elements and tools.
- Support for automatic packaging systems.
- Control of cycle operation in automated production lines.
- Use in mass and custom production systems.
Features and Benefits
- Easy integration with robotic and PLC systems
- Fast response in dynamic machining processes
- Long service life in continuous operation
When to choose this model
- Used for detecting large metal components.
- Used in large production machines.
- Used in large-scale industrial installations.
- Used in heavy-duty OEM systems.
Connection
The sensor has two NPN outputs, NO and NC, on separate pins (NO on pin 4, NC on pin 2), so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) indicate the state of a PNP output and have pins 2 and 4 joined inside the connector, so they are not suitable for this sensor.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
