Inductive sensor M30 78 mm connector M12 NPN NO & NC Sn = 16 mm
- ● Threaded M30 housing for mounting in a hole or bracket
- ● Extended module for large machines and production lines
- ● Sensor for detection over larger areas
- ● Plug-in – nickel-plated brass housing
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A durable inductive sensor NIS30425 with a PBT sensing face is widely used in modern industrial installations.

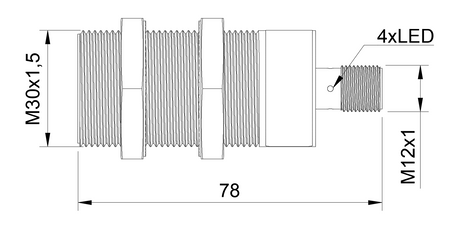

This M30 model ensures reliability in industrial installations with intensive use. The Ø30 x 78 mm format allows use in systems requiring a large active surface and high mechanical resistance.
Technical specification:
- Diameter: M30, stable operation at long sensing distances
- Length: 78 mm, designed for demanding operating conditions
- Sensing range: 16 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, stable mechanical properties of the material
- Sensing face material: PBT, sensing face material – PBT
- Mounting: Flush mounting
- Switching function: NO & NC
- Cable length: n/d
- Supply voltage: DC 10-30V, compatible with PLC systems
Applications
- Application in production lines of automotive components for detecting the presence of metal elements.
- Application in material feeding and unloading systems.
- Control of production line synchronization.
- Application in robotic systems for detecting element positions.
- Detection of position in internal transport systems.
Features and Benefits
- Signal repeatability in mass production processes
- High detection precision in machining environments
- Resistance to intensive cyclic operation
- High precision positioning of elements in robotic systems
- Resistance to electromagnetic interference
When to choose this model
- Used in high-load applications.
- Used in high-performance systems.
- Used in large-scale industrial installations.
- Used in systems requiring long detection range.
Connection
The sensor has two NPN outputs, NO and NC, on separate pins (NO on pin 4, NC on pin 2), so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) indicate the state of a PNP output and have pins 2 and 4 joined inside the connector, so they are not suitable for this sensor.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
