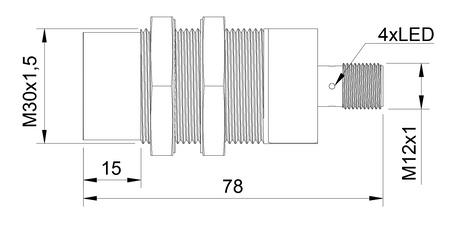

Inductive sensor M30 78 mm connector M12 NPN NO & NC Sn = 15 mm
- ● M30 for large automation systems
- ● Extended housing for large installations
- ● Sn distance ensuring consistent detection
- ● Plug-in – simple installation in machinery
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A durable inductive sensor NIS30415 with a PBT sensing face is widely used in modern industrial installations.
The M30 sensor provides high operational efficiency in control and production systems. The Ø30 x 78 mm format supports applications in heavy industry and large production systems.
Technical specification:
- Diameter: M30, high mechanical and environmental resistance
- Length: 78 mm, used in large industrial installations
- Sensing range: 15 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, used in standard industrial applications
- Sensing face material: PBT, sensing face material – PBT
- Mounting: non-flush mounting
- Switching function: NO & NC
- Cable length: n/d
- Supply voltage: DC 10-30V, stable operation in DC automation
Applications
- Application in production lines of automotive components for detecting the presence of metal elements.
- Use in automation of cutting and milling processes.
- Application in packaging transport systems.
- Operation in modern production robotization systems.
- Use in actuator and mechanism control systems.
Features and Benefits
- Reliable detection of workpiece and tool positions
- Stable detection in high-throughput processes
- High precision positioning of elements in robotic systems
- Versatile use in different OEM machine types
When to choose this model
- Used in high-load applications.
- Used in large production machines.
- Suitable for harsh operating conditions.
- Ensures long-term operational stability.
Connection
The sensor has two NPN outputs, NO and NC, on separate pins (NO on pin 4, NC on pin 2), so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) indicate the state of a PNP output and have pins 2 and 4 joined inside the connector, so they are not suitable for this sensor.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
This product is covered by a 24-month warranty from the date of purchase. Claims can be submitted via the complaint form in our shop. Your statutory rights are not affected by this warranty.
