Inductive sensor M30 78 mm connector M12 NPN NO & NC Sn = 10 mm
- ● M30 housing for large applications
- ● Extended version for stable embedding
- ● Ideal for detection within standard range
- ● Plug-in – precise in challenging applications
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An advanced inductive sensor NIS30405 with a PBT sensing face supports the efficient operation of industrial machines and equipment.

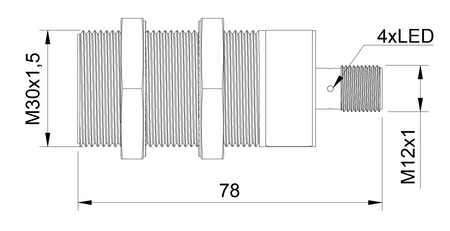

The M30 sensor belongs to a series of devices designed for demanding applications. The Ø30 x 78 mm size allows stable operation in applications with strong vibration and mechanical forces.
Technical specification:
- Diameter: M30, high mechanical and environmental resistance
- Length: 78 mm, used in large industrial installations
- Sensing range: 10 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, good protection against standard corrosion
- Sensing face material: PBT,
- Mounting: Flush mounting
- Switching function: NO & NC
- Cable length: n/d
- Supply voltage: DC 10-30V, commonly used control supply
Applications
- Support for automation of welding processes and steel structure assembly.
- Position control of machine axes and working components.
- Operation in high-speed packaging production cycles.
- Use in automation of pick & place processes.
- Application in machine safety and interlock systems.
Features and Benefits
- Precise detection of metal components in assembly processes
- Stable operation in CNC machines and automation systems
- High response speed in packaging lines
- High precision positioning of elements in robotic systems
- Stable operation in high-duty cycle machines
When to choose this model
- Suitable for heavy industry and large installations.
- Suitable for mining and heavy industry.
- Used in heavy transport systems.
- Used in heavy-duty OEM systems.
Connection
The sensor has two NPN outputs, NO and NC, on separate pins (NO on pin 4, NC on pin 2), so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) indicate the state of a PNP output and have pins 2 and 4 joined inside the connector, so they are not suitable for this sensor.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
