Inductive sensor M30 78 mm connector M12 NPN NC Sn = 40 mm
- ● Large M30 provides flexibility in embedding
- ● For applications requiring more space
- ● Sensor with high operating range
- ● Plug-in – simple installation in machinery
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An industrial inductive sensor NIS30452 with a PBT sensing face is ideal for applications requiring durability and precise performance.

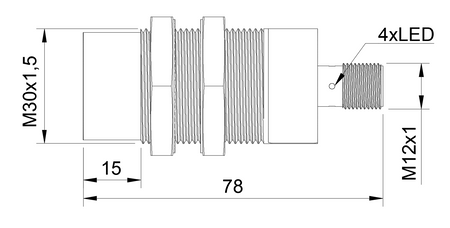

The M30 product was designed for industrial automation with high requirements. The Ø30 x 78 mm size increases resistance to mounting loosening during long-term operation.
Technical specification:
- Diameter: M30, high mechanical and environmental resistance
- Length: 78 mm, larger mounting surface for thread connection
- Sensing range: 40 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, good protection against standard corrosion
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: non-flush mounting
- Switching function: NC, continuous signal monitoring in circuit
- Cable length: n/d
- Supply voltage: DC 10-30V, compatible with PLC systems
Applications
- Application in robotized assembly stations.
- Application in material feeding and unloading systems.
- Support for automatic packaging systems.
- Control of cycle operation in automated production lines.
- Application in OEM machine automation.
Features and Benefits
- High reliability in automated automotive production lines
- Stable operation in CNC machines and automation systems
- High precision positioning of elements in robotic systems
- Resistance to electromagnetic interference
When to choose this model
- Used for detecting large metal components.
- Performs well in high-vibration environments.
- Ensures reliable detection of large objects.
- Used in heavy-duty OEM systems.
Connection
The sensor has an NPN output, so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) have a yellow status LED wired for a PNP output and are not suitable for NPN sensors.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
