Inductive sensor M30 78 mm connector M12 NPN NC Sn = 16 mm
- ● Threaded M30 housing for mounting in a hole or bracket
- ● Housing for extensive workspaces
- ● Sn distance for long-distance detection
- ● Plug-in – IP67: dust-tight and protected against immersion in water
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS30422 with a PBT sensing face offers high resistance to external factors and intensive operation.

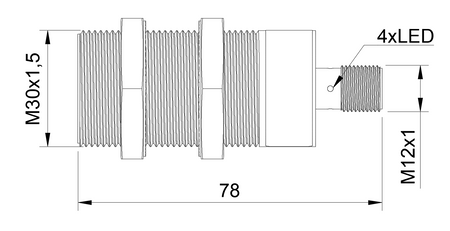

The M30 inductive sensor is a key component of industrial automation systems. The Ø30 x 78 mm housing provides maximum installation stability in industrial systems.
Technical specification:
- Diameter: M30, maximum detection range in this design class
- Length: 78 mm, larger mounting surface for thread connection
- Sensing range: 16 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, smooth surface for easier operation
- Sensing face material: PBT,
- Mounting: Flush mounting
- Switching function: NC, used in safety functions
- Cable length: n/d
- Supply voltage: DC 10-30V, commonly used control supply
Applications
- Quality and presence control of elements in production processes.
- Support for automatic clamping systems.
- Operation in high-speed packaging production cycles.
- Use in automation of pick & place processes.
- Operation in demanding industrial high-reliability environments.
Features and Benefits
- Precise detection of metal components in assembly processes
- Reliable detection of workpiece and tool positions
- Easy integration with dosing and labeling machines
- Fast detection in pick & place processes
- High resistance to harsh industrial conditions
When to choose this model
- Used in high-load applications.
- Ensures maximum durability.
- Used in large-scale industrial installations.
- Used in continuous production.
Connection
The sensor has an NPN output, so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) have a yellow status LED wired for a PNP output and are not suitable for NPN sensors.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
