Inductive sensor M30 78 mm connector M12 NPN NC Sn = 10 mm
- ● Large M30 provides flexibility in embedding
- ● Enlarged enclosure for stable mounting
- ● Standard operating zone for industrial systems
- ● Plug-in – nickel-plated brass housing
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

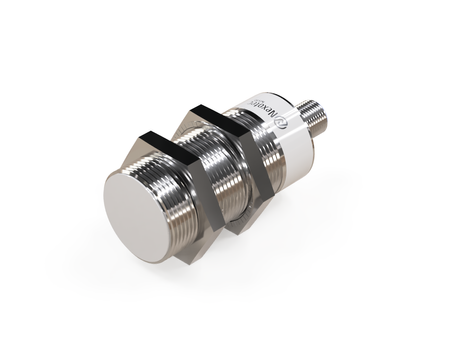

A versatile inductive sensor NIS30402 with a PBT sensing face combines durability, a compact design, and reliable performance.

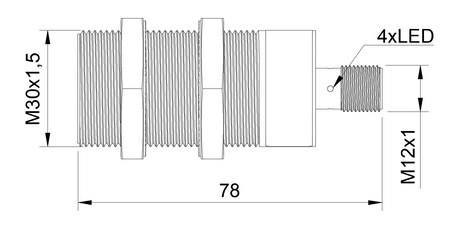

The M30 sensor supports machine performance in modern technological lines. The Ø30 x 78 mm size increases resistance to mounting loosening during long-term operation.
Technical specification:
- Diameter: M30, stable operation at long sensing distances
- Length: 78 mm, larger mounting surface for thread connection
- Sensing range: 10 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, stable mechanical properties of the material
- Sensing face material: PBT,
- Mounting: Flush mounting
- Switching function: NC, opens upon object detection
- Cable length: n/d
- Supply voltage: DC 10-30V, stable operation in DC automation
Applications
- Application in production lines of automotive components for detecting the presence of metal elements.
- Application in material feeding and unloading systems.
- Operation in high-speed packaging production cycles.
- Detection of elements in robotic work zones.
- Control of processes in complex mechanical systems.
Features and Benefits
- High reliability in automated automotive production lines
- Compatibility with standard industrial control systems
- Resistance to intensive cyclic operation
When to choose this model
- Used in applications requiring maximum detection range.
- Suitable for dusty environments.
- Suitable for harsh operating conditions.
- Used in heavy-duty OEM systems.
Connection
The sensor has an NPN output, so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) have a yellow status LED wired for a PNP output and are not suitable for NPN sensors.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
