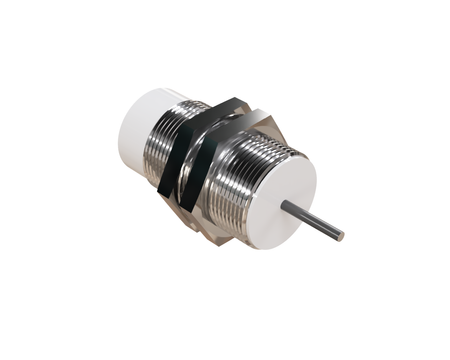

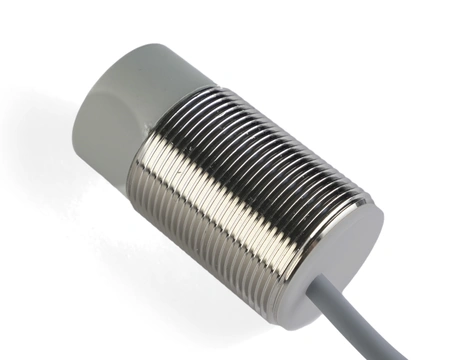

Inductive sensor M30 55 mm cable 3m PNP NO Sn = 40 mm
- ● Large M30 provides flexibility in embedding
- ● Housing for larger industrial installations
- ● Sensor for long-range applications
- ● With cable – operating temperature -25 °C to +70 °C
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS30153-K3 with a PBT sensing face is an efficient solution for production systems and control circuits.
The M30 product was designed for industrial automation with high requirements. The larger Ø30 x 55 mm housing provides better transfer of mounting loads.
Technical specification:
- Diameter: M30, maximum detection range in this design class
- Length: 55 mm, larger mounting surface for thread connection
- Sensing range: 40 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, good protection against standard corrosion
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: non-flush mounting
- Switching function: NO, standard inductive sensor logic
- Cable length: 3 m
- Supply voltage: DC 10-30V, compatible with PLC systems
Applications
- Quality and presence control of elements in production processes.
- Application in material feeding and unloading systems.
- Application in packaging transport systems.
- Use in automatic assembly systems.
- Control of processes in complex mechanical systems.
Features and Benefits
- Easy integration with robotic and PLC systems
- High detection precision in machining environments
- High precision positioning of elements in robotic systems
- Resistance to electromagnetic interference
When to choose this model
- Used in high-load applications.
- Used in 24/7 installations.
- Ensures reliable detection of large objects.
- Ensures long-term operational stability.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
