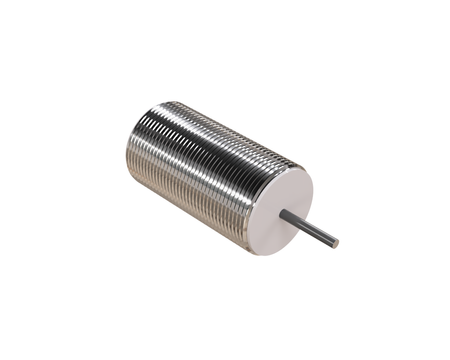

Inductive sensor M30 55 mm cable 3m PNP NO & NC Sn = 10 mm
Symbol:
NIS30106-K3
Inductive sensor M30 55 mm cable 3m PNP NO & NC Sn = 10 mm
- ● M30 provides comfortable layout in large systems
- ● Enlarged enclosure for stable mounting
- ● Standard range for everyday machine operation
- ● With cable – protected against oils and lubricants
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Files to download
NIS30106-K3
An inductive sensor NIS30106-K3 with a Teflon sensing face offers high resistance to external factors and intensive operation.
The M30 inductive sensor is a component of large-scale production installations., Obudowa Ø30 x 55 mm gwarantuje wyjątkowo pewne osadzenie w konstrukcjach o dużych obciążeniach.
Technical specification:
- Diameter: M30, maximum detection range in this design class
- Length: 55 mm, larger mounting surface for thread connection
- Sensing range: 10 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, used in standard industrial applications
- Sensing face material: PBT, sensing face material – PBT
- Mounting: Flush mounting
- Switching function: NO & NC
- Cable length: 3 m
- Supply voltage: DC 10-30V, stable operation in DC automation
Applications
- Detection of elements in automated vehicle production systems.
- Use in automation of cutting and milling processes.
- Detection of metal elements and components in packaging systems.
- Use in automatic assembly systems.
- Application in industrial machines for controlling position of moving parts.
Features and Benefits
- Easy integration with robotic and PLC systems
- Stable operation in CNC machines and automation systems
- Easy integration with dosing and labeling machines
- Compatibility with industrial robots and EOAT systems
- Resistance to electromagnetic interference
When to choose this model
- Used in applications requiring maximum detection range.
- Ensures maximum durability.
- Used in heavy transport systems.
- Suitable for extremely demanding applications.
Other information
Brand
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NIS30106-K3
Producer code
5907367825800
Series
General information
DiameterMore
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
M30
Switching distance
10 mm
Mounting
Mounting Flush
Output function
PNP
Switching function
NO & NC
Electrical data
Operating voltage
DC 10-30V
No load current
<10mA
Max load current
200mA
Leakage current
<0.01mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220mA
Voltage drop
<1,5V
Ripple
<10%
Response time
0,5ms
Switching frequency
300Hz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Nickel-plated brass
Material active face
PBT
LED display
YES
Dimensions
Ø30 x 55 mm
Sensor length
55 mm
Electrical connection
Connection type
Cable
Connector size
n/d
Number of pins
n/d
Cable length
3 m
Cable diameter
⌀ 5 mm
Cable
4 x 0,25 mm²
Cable material
PVC
Operating conditions
Protection category
IP67
Operating temperature min
-25℃
Operating temperature max
+70℃
Inne
Manufacturer code
NIS30106-K3
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Współczynnik redukcji
Fe37 steel
1
Aluminium
0,35 - 0,6
Brass
0,4 - 0,7
Copper
0,25 – 0,5
Stainless steel
0,8 - 1
Cast iron
0,95 - 1
Nikiel
0,6 - 0,75
