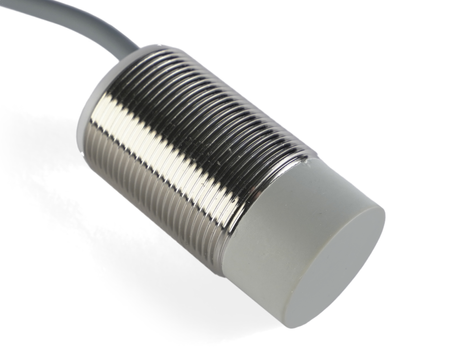

Inductive sensor M30 55 mm cable 3m PNP NC Sn = 40 mm
- ● M30 allows easy installation
- ● Modular housing for wide panels
- ● Sensor with extended detection field
- ● With cable – simple installation in standard machinery
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A professional inductive sensor NIS30154-K3 with a PBT sensing face performs exceptionally well in applications requiring high reliability.
The M30 sensor ensures continuous operation in monitoring and control systems. The Ø30 x 55 mm format allows use in systems requiring a large active surface and high mechanical resistance.
Technical specification:
- Diameter: M30, maximum detection range in this design class
- Length: 55 mm, used in large industrial installations
- Sensing range: 40 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, good protection against standard corrosion
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: non-flush mounting
- Switching function: NC, continuous signal monitoring in circuit
- Cable length: 3 m
- Supply voltage: DC 10-30V, compatible with PLC systems
Applications
- Monitoring of component presence in production transport systems.
- Application in CNC machines for position control of elements and tools.
- Application in forming and sealing machines.
- Position control of grippers and robotic actuators.
- Position detection in special-purpose machines.
Features and Benefits
- Signal repeatability in mass production processes
- Reliable detection of workpiece and tool positions
- High response speed in packaging lines
- Reliable synchronization of machines and robots
- Versatile use in different OEM machine types
When to choose this model
- Used in high-load applications.
- Suitable for dusty environments.
- Ensures reliable detection of large objects.
- Used in systems requiring long detection range.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
