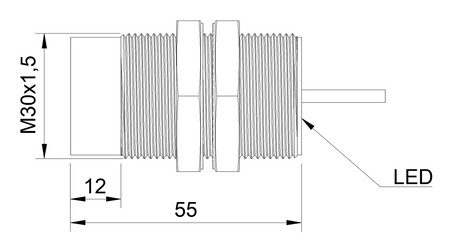

Inductive sensor M30 55 mm cable 3m NPN NO Sn = 50 mm
- ● Threaded M30 housing for mounting in a hole or bracket
- ● Long design for wide systems
- ● Sensor with greater detection distance
- ● With cable – IP67: dust-tight and protected against immersion in water
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A durable inductive sensor NIS30171-K3 with a PBT sensing face is widely used in modern industrial installations.
The M30 inductive sensor is a key component of industrial automation systems. The larger Ø30 x 55 mm housing provides better transfer of mounting loads.
Technical specification:
- Diameter: M30, high mechanical and environmental resistance
- Length: 55 mm, larger mounting surface for thread connection
- Sensing range: 50 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, used in standard industrial applications
- Sensing face material: PBT,
- Mounting: non-flush mounting
- Switching function: NO, signal generated upon metal detection
- Cable length: 3 m
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Use in assembly processes and verification of correct part positioning.
- Application in tool change and positioning systems.
- Control of production line synchronization.
- Support for synchronization of robots and machines.
- Application in machine safety and interlock systems.
Features and Benefits
- Resistance to vibrations and intensive operation
- Compatibility with standard industrial control systems
- High response speed in packaging lines
- Stable operation in dynamic automation systems
- Versatile use in different OEM machine types
When to choose this model
- Used for detecting large metal components.
- Suitable for mining and heavy industry.
- Ensures reliable detection of large objects.
- Suitable for extremely demanding applications.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
