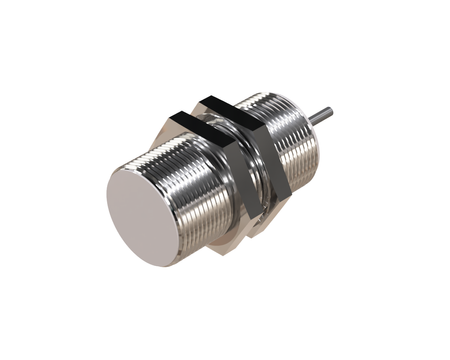

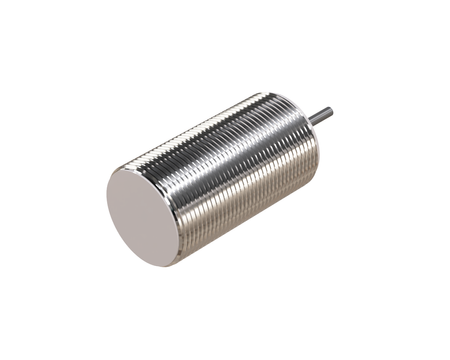

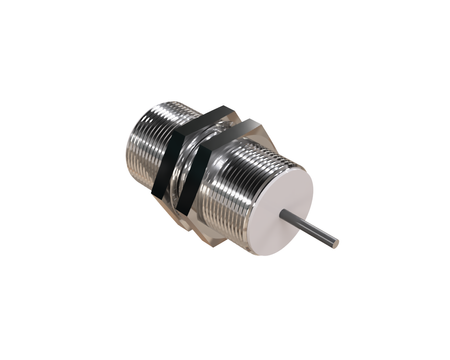

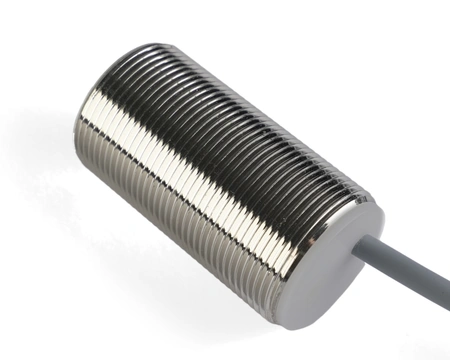

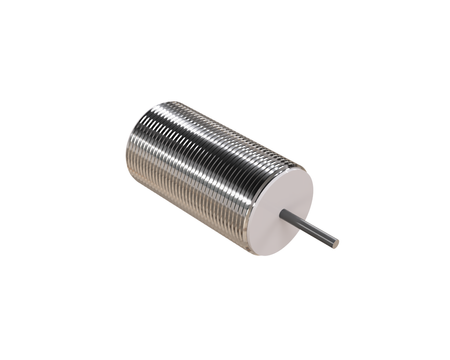

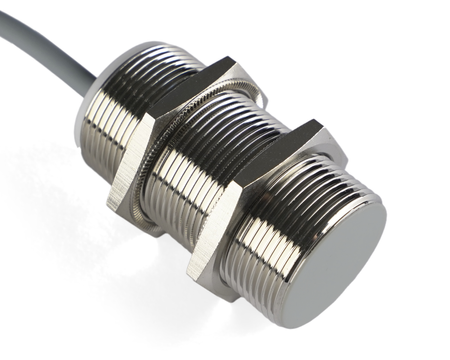

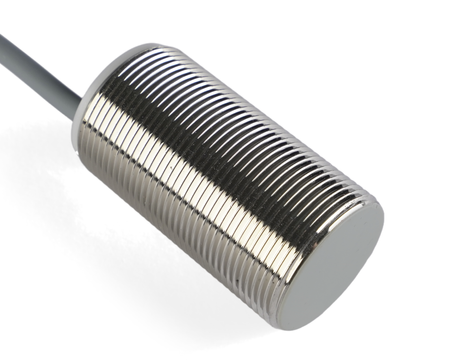

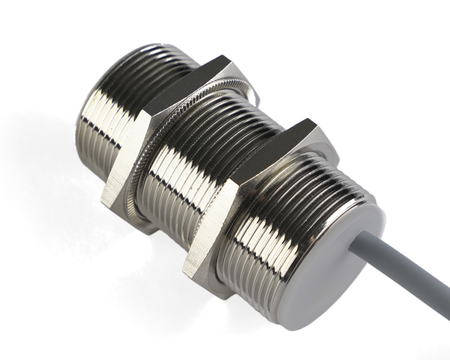

Inductive sensor M30 55 mm cable 3m NPN NO & NC Sn = 16 mm
Symbol:
NIS30125-K3
Inductive sensor M30 55 mm cable 3m NPN NO & NC Sn = 16 mm
- ● Large-diameter M30 allows dense mounting
- ● Housing for extensive workspaces
- ● Sensor for long-range detection
- ● With cable – stable under vibrations and shocks
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Files to download
NIS30125-K3
A compact inductive sensor NIS30125-K3 with a Teflon face is a reliable solution for control systems and production lines.
The M30 model represents a line of sensors for heavy-duty applications., Obudowa Ø30 x 55 mm gwarantuje wyjątkowo pewne osadzenie w konstrukcjach o dużych obciążeniach.
Technical specification:
- Diameter: M30, stable operation at long sensing distances
- Length: 55 mm, larger mounting surface for thread connection
- Sensing range: 16 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, used in standard industrial applications
- Sensing face material: PBT,
- Mounting: Flush mounting
- Switching function: NO & NC
- Cable length: 3 m
- Supply voltage: DC 10-30V, commonly used control supply
Applications
- Detection of elements in automated vehicle production systems.
- Application in material feeding and unloading systems.
- Detection of metal elements and components in packaging systems.
- Support for synchronization of robots and machines.
- Application in industrial machines for controlling position of moving parts.
Features and Benefits
- Precise detection of metal components in assembly processes
- Reliable detection of workpiece and tool positions
- Resistance to frequent cycles and micro-vibrations
- Resistance to electromagnetic interference
When to choose this model
- Used in high-load applications.
- Used in high-performance systems.
- Used in large-scale industrial installations.
- Suitable for extremely demanding applications.
Other information
Brand
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NIS30125-K3
Producer code
5907367826258
Series
General information
DiameterMore
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
M30
Switching distance
16 mm
Mounting
Mounting Flush
Output function
NPN
Switching function
NO & NC
Electrical data
Operating voltage
DC 10-30V
No load current
<10mA
Max load current
200mA
Leakage current
<0.01mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220mA
Voltage drop
<1,5V
Ripple
<10%
Response time
1ms
Switching frequency
150Hz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Nickel-plated brass
Material active face
PBT
LED display
YES

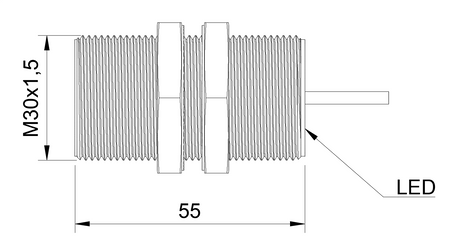

Dimensions
Ø30 x 55 mm
Sensor length
55 mm
Electrical connection
Connection type
Cable
Connector size
n/d
Number of pins
n/d
Cable length
3 m
Cable diameter
⌀ 5 mm
Cable
4 x 0,25 mm²
Cable material
PVC
Operating conditions
Protection category
IP67
Operating temperature min
-25℃
Operating temperature max
+70℃
Inne
Manufacturer code
NIS30125-K3
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Współczynnik redukcji
Fe37 steel
1
Aluminium
0,35 - 0,6
Brass
0,4 - 0,7
Copper
0,25 – 0,5
Stainless steel
0,8 - 1
Cast iron
0,95 - 1
Nikiel
0,6 - 0,75
