Inductive sensor M30 55 mm cable 3m NPN NO & NC Sn = 15 mm
- ● M30 version simplifies component placement
- ● Long version for open mounting areas
- ● Comfortable detection range for common processes
- ● With cable – precise in demanding systems
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
NIS30115-K3
An industrial Teflon-faced inductive sensor NIS30115-K3 has been designed for operation in harsh environmental conditions.
The M30 model represents a line of sensors for heavy-duty applications., Obudowa Ø30 x 55 mm umożliwia stabilną pracę w środowiskach o dużej dynamice mechanicznej.
Technical specification:

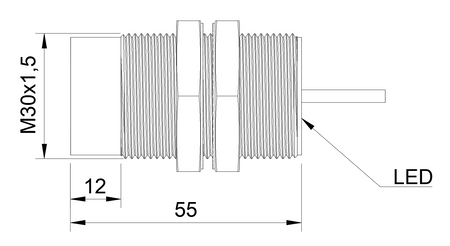

- Diameter: M30, maximum detection range in this design class
- Length: 55 mm, used in large industrial installations
- Sensing range: 15 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, smooth surface for easier operation
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: non-flush mounting
- Switching function: NO & NC
- Cable length: 3 m
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Monitoring of component presence in production transport systems.
- Detection of workpieces before machining operations.
- Application in packaging transport systems.
- Support for synchronization of robots and machines.
- Position detection in special-purpose machines.
Features and Benefits
- Signal repeatability in mass production processes
- Stable operation in dynamic automation systems
- Long service life in continuous operation
When to choose this model
- Suitable for heavy industry and large installations.
- Used in 24/7 installations.
- Used in heavy-duty OEM systems.
- Used in continuous production.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
