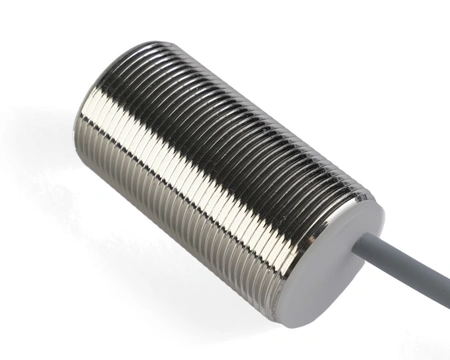

Inductive sensor M30 55 mm cable 2m PNP NO Sn = 16 mm
Symbol:
NIS30123-K2
Inductive sensor M30 55 mm cable 2m PNP NO Sn = 16 mm
- ● M30 allows easy installation
- ● Long design for wide systems
- ● Sn distance for long-distance detection
- ● With cable – ideal for universal installations
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Files to download
NIS30123-K2
An industrial inductive sensor NIS30123-K2 with a Teflon sensing face is ideal for applications requiring durability and precise performance.
A product in the M30 standard is a component of automation systems with increased durability., Czujnik Ø30 x 55 mm to rozwiązanie dla aplikacji, gdzie kluczowa jest maksymalna trwałość montażu.
Technical specification:
- Diameter: M30, high mechanical and environmental resistance
- Length: 55 mm, better resistance to vibration and stress
- Sensing range: 16 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, used in standard industrial applications
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: Flush mounting
- Switching function: NO, standard inductive sensor logic
- Cable length: 2 m
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Operation in demanding industrial automotive environments.
- Support for automatic clamping systems.
- Application in packaging transport systems.
- Position control of grippers and robotic actuators.
- Application in OEM machine automation.
Features and Benefits
- Stable operation in high-dynamic cycle environments
- Stable operation in CNC machines and automation systems
- Reliable operation in automated packaging systems
- Resistance to frequent cycles and micro-vibrations
- Reliable operation in safety and control systems
When to choose this model
- Used in high-load applications.
- Ensures very stable detection.
- Used in large-scale industrial installations.
- Ensures highest operational reliability.
Other information
Brand
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NIS30123-K2
Producer code
5907367826180
Series
General information
DiameterMore
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
M30
Switching distance
16 mm
Mounting
Mounting Flush
Output function
PNP
Switching function
NO
Electrical data
Operating voltage
DC 10-30V
No load current
<10mA
Max load current
200mA
Leakage current
<0.01mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220mA
Voltage drop
<1,5V
Ripple
<10%
Response time
1ms
Switching frequency
150Hz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Nickel-plated brass
Material active face
PBT
LED display
YES
Dimensions
Ø30 x 55 mm
Sensor length
55 mm
Electrical connection
Connection type
Cable
Connector size
n/d
Number of pins
n/d
Cable length
2 m
Cable diameter
⌀ 5 mm
Cable
3 x 0,34 mm²
Cable material
PVC
Operating conditions
Protection category
IP67
Operating temperature min
-25℃
Operating temperature max
+70℃
Inne
Manufacturer code
NIS30123-K2
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Współczynnik redukcji
Fe37 steel
1
Aluminium
0,35 - 0,6
Brass
0,4 - 0,7
Copper
0,25 – 0,5
Stainless steel
0,8 - 1
Cast iron
0,95 - 1
Nikiel
0,6 - 0,75
Manufacturer's warranty for 2 years
