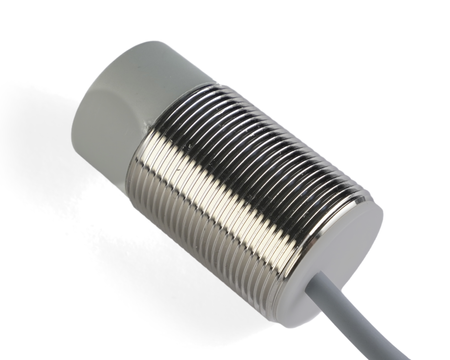

Inductive sensor M30 55 mm cable 2m PNP NC Sn = 40 mm
- ● M30 provides comfortable layout in large systems
- ● Longer module for expanded systems
- ● Sensor with extended range for long-distance detection
- ● With cable – fast adjustment and connection
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS30154-K2 for industrial applications with a PBT sensing face stands out for its high mechanical resistance and stable operation.
The M30 sensor ensures continuous operation in monitoring and control systems. Thanks to its design, the Ø30 x 55 mm sensor performs better in heavy machinery and production lines.
Technical specification:
- Diameter: M30, maximum detection range in this design class
- Length: 55 mm, used in large industrial installations
- Sensing range: 40 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, used in standard industrial applications
- Sensing face material: PBT,
- Mounting: non-flush mounting
- Switching function: NC, used in safety functions
- Cable length: 2 m
- Supply voltage: DC 10-30V, commonly used control supply
Applications
- Use in positioning and production synchronization systems.
- Operation in high-dynamics industrial environments.
- Operation in high-speed packaging production cycles.
- Detection of elements in robotic work zones.
- Position detection in special-purpose machines.
Features and Benefits
- High reliability in automated automotive production lines
- High detection precision in machining environments
- High response speed in packaging lines
- Resistance to electromagnetic interference
When to choose this model
- Used for detecting large metal components.
- Used in large production machines.
- Suitable for very demanding applications.
- Suitable for extremely demanding applications.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
This product is covered by a 24-month warranty from the date of purchase. Claims can be submitted via the complaint form in our shop. Your statutory rights are not affected by this warranty.
