Inductive sensor M30 55 mm cable 2m PNP NC Sn = 25 mm
- ● Threaded M30 housing for mounting in a hole or bracket
- ● Long design for wide systems
- ● Sensor with greater detection distance
- ● With cable – IP67: dust-tight and protected against immersion in water
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS30164-K2 with a PBT sensing face is an efficient solution for production systems and control circuits.

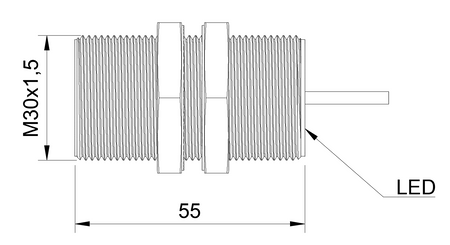

The M30 model belongs to a series of sensors designed for operation in heavy industrial conditions. The Ø30 x 55 mm housing guarantees exceptionally secure seating in heavily loaded structures.
Technical specification:
- Diameter: M30, high mechanical and environmental resistance
- Length: 55 mm, larger mounting surface for thread connection
- Sensing range: 25 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, stable mechanical properties of the material
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: Flush mounting
- Switching function: NC, signal continuity monitoring
- Cable length: 2 m
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Quality and presence control of elements in production processes.
- Application in CNC machines for position control of elements and tools.
- Detection of product position in packaging processes.
- Application in robotic axis positioning systems.
- Support for high-duty cycle equipment operation.
Features and Benefits
- Easy integration with robotic and PLC systems
- Resistance to coolants, oils and industrial contaminants
- Precise synchronization of production processes
- Resistance to frequent cycles and micro-vibrations
- Resistance to electromagnetic interference
When to choose this model
- Used in applications requiring maximum detection range.
- Ensures maximum durability.
- Suitable for harsh operating conditions.
- Suitable for extremely demanding applications.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
