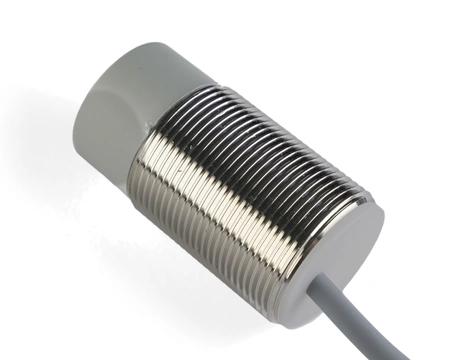

Inductive sensor M30 55 mm cable 2m NPN NC Sn = 40 mm
- ● M30 version simplifies component placement
- ● Long design for wide systems
- ● Sensor for remote installations
- ● With cable – operating temperature -25 °C to +70 °C
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A modern inductive sensor NIS30152-K2 with a PBT sensing face provides a long service life in demanding industrial environments.
The M30 inductive sensor is a component of large-scale production installations. Ø30 x 55 mm sensors provide solid fixing in large mounting holes.
Technical specification:
- Diameter: M30, stable operation at long sensing distances
- Length: 55 mm, better resistance to vibration and stress
- Sensing range: 40 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, stable mechanical properties of the material
- Sensing face material: PBT, sensing face material – PBT
- Mounting: non-flush mounting
- Switching function: NC, continuous signal monitoring in circuit
- Cable length: 2 m
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Application in production lines of automotive components for detecting the presence of metal elements.
- Monitoring of processes in machining centers.
- Control of labeling and dosing machines.
- Application in robotic systems for detecting element positions.
- Application in machine safety and interlock systems.
Features and Benefits
- High reliability in automated automotive production lines
- Resistance to coolants, oils and industrial contaminants
- High response speed in packaging lines
- Compatibility with industrial robots and EOAT systems
- Stable operation in high-duty cycle machines
When to choose this model
- Ensures highest mechanical resistance.
- Suitable for mining and heavy industry.
- Used in large-scale industrial installations.
- Used in heavy-duty OEM systems.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
