Inductive sensor M30 53 mm connector M12 PNP NO & NC Sn = 15 mm
- ● M30 version for larger applications
- ● Short housing for tight mounting spaces
- ● Standard operating zone for industrial systems
- ● Plug-in – convenient installation and operation
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS30316 with a PBT sensing face is a robust component for modern automation systems.

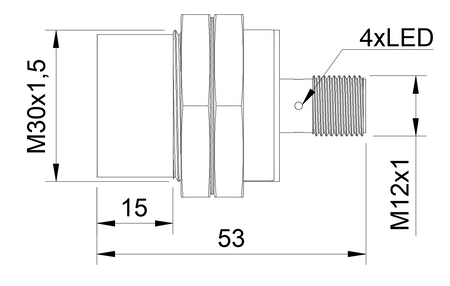

The M30 product was designed for industrial automation with high requirements. The Ø30 x 53 mm design increases resistance to mechanical and operational stresses.
Technical specification:
- Diameter: M30, high mechanical and environmental resistance
- Length: 53 mm, used in large industrial installations
- Sensing range: 15 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, stable mechanical properties of the material
- Sensing face material: PBT,
- Mounting: non-flush mounting
- Switching function: NO & NC
- Cable length: n/d
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Monitoring of component presence in production transport systems.
- Detection of workpieces in machining fixtures.
- Operation in high-speed packaging production cycles.
- Support for synchronization of robots and machines.
- Application in industrial machines for controlling position of moving parts.
Features and Benefits
- Easy integration with robotic and PLC systems
- Compatibility with standard industrial control systems
- Resistance to intensive cyclic operation
- Compatibility with industrial robots and EOAT systems
- Long service life in continuous operation
When to choose this model
- Ensures highest mechanical resistance.
- Suitable for mining and heavy industry.
- Used in large automation lines.
- Used in continuous production.
Connection
The sensor has two outputs, NO and NC, on separate pins (NO on pin 4, NC on pin 2), so connect it with an M12 4-pin connection cable without LEDs, which brings out both pins separately. In cables with LEDs (NXOC12281…, NXOC12401…) pins 2 and 4 are joined inside the connector, so they are not suitable for sensors with two outputs.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
