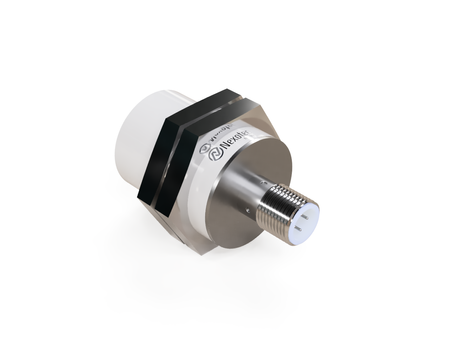

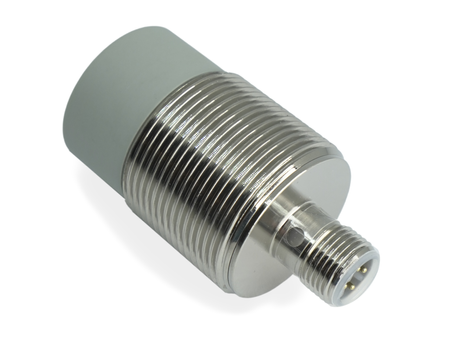

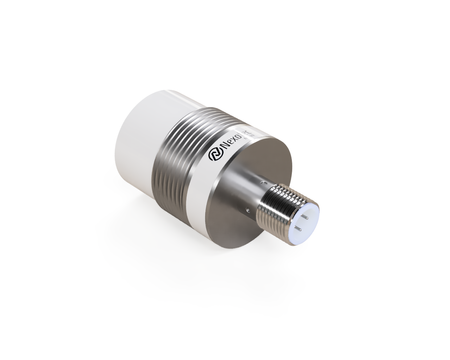

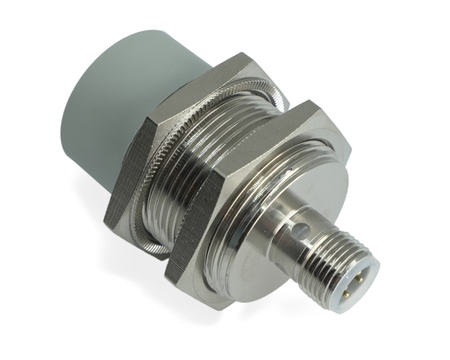

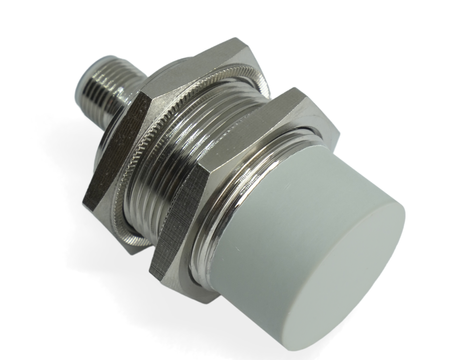

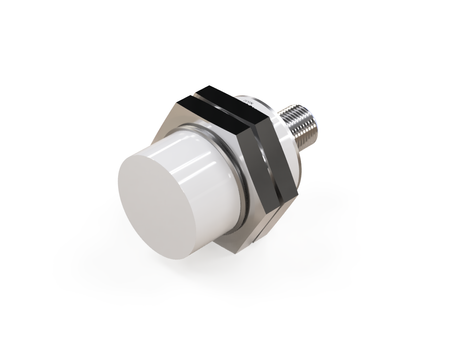

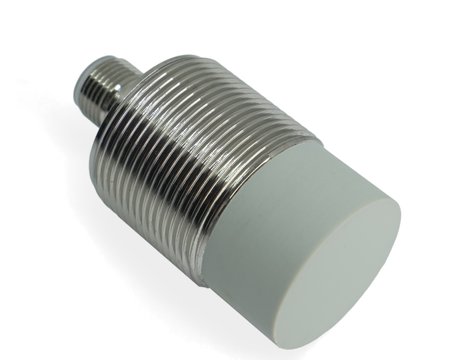

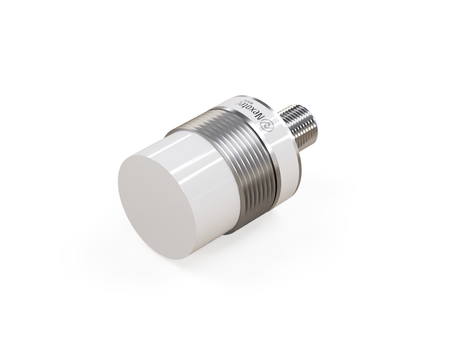

Inductive sensor M30 53 mm connector M12 PNP NC Sn = 40 mm
- ● Maximum-diameter M30 provides ample mounting space
- ● Housing for extensive workspaces
- ● Sensor with high operating range
- ● Plug-in – IP67: dust-tight and protected against immersion in water
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS30354 with a PBT sensing face ensures reliable operation in automation and process control systems.
The M30 sensor supports machine performance in modern technological lines. Ø30 x 53 mm sensors provide solid fixing in large mounting holes.
Technical specification:

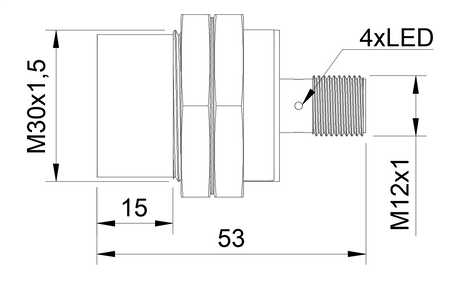

- Diameter: M30, maximum detection range in this design class
- Length: 53 mm, used in large industrial installations
- Sensing range: 40 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, good protection against standard corrosion
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: non-flush mounting
- Switching function: NC, opens upon object detection
- Cable length: n/d
- Supply voltage: DC 10-30V, compatible with PLC systems
Applications
- Application in robotized assembly stations.
- Monitoring of processes in machining centers.
- Detection of product position in packaging processes.
- Use in automation of pick & place processes.
- Use in mass and custom production systems.
Features and Benefits
- Signal repeatability in mass production processes
- Fast response in dynamic machining processes
- Precise synchronization of production processes
- Reliable synchronization of machines and robots
- Long service life in continuous operation
When to choose this model
- Used in applications requiring maximum detection range.
- Ensures maximum durability.
- Used in large automation lines.
- Used in continuous production.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
