Inductive sensor M30 53 mm connector M12 NPN NC Sn = 25 mm
- ● M30 provides comfortable layout in large systems
- ● For applications requiring more space
- ● Sensor with wide operating range
- ● Plug-in – quick installation and connection
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

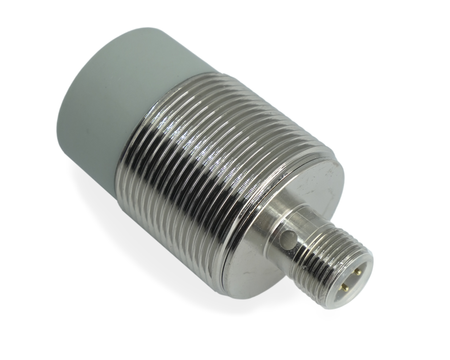

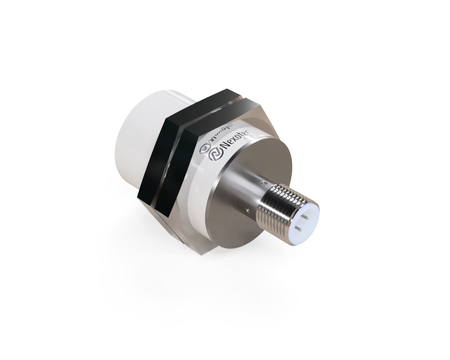

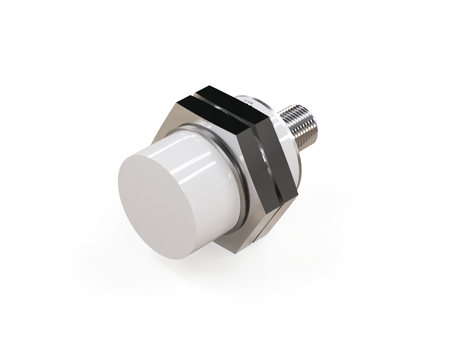

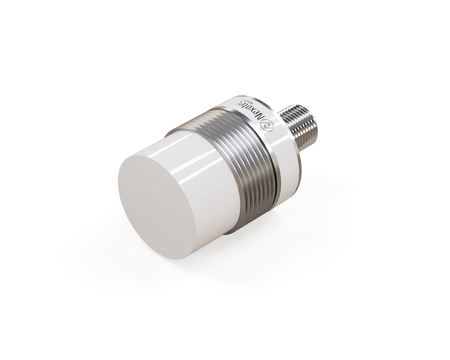

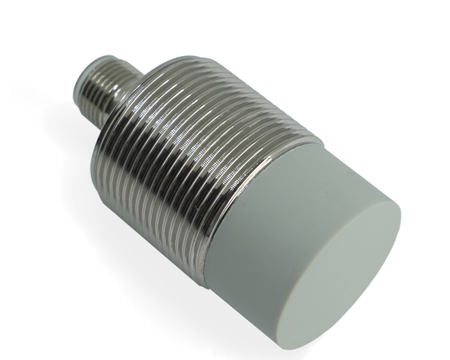

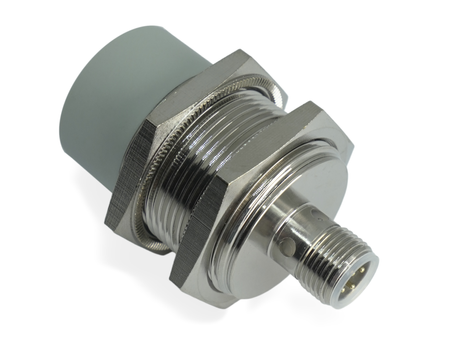

An industrial inductive sensor NIS30332 with a PBT sensing face has been designed for operation in harsh environmental conditions.
The M30 inductive model is a solution for systems requiring high operational efficiency. The Ø30 x 53 mm housing guarantees exceptionally secure seating in heavily loaded structures.
Technical specification:
- Diameter: M30, designed for heavy industry
- Length: 53 mm, better resistance to vibration and stress
- Sensing range: 25 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, smooth surface for easier operation
- Sensing face material: PBT,
- Mounting: non-flush mounting
- Switching function: NC, continuous signal monitoring in circuit
- Cable length: n/d
- Supply voltage: DC 10-30V, commonly used control supply
Applications
- Detection of elements in automated vehicle production systems.
- Position control of machine axes and working components.
- Operation in high-speed packaging production cycles.
- Support for synchronization of robots and machines.
- Use in actuator and mechanism control systems.
Features and Benefits
- High reliability in automated automotive production lines
- Fast response in dynamic machining processes
- Resistance to intensive cyclic operation
- Fast detection in pick & place processes
- High resistance to harsh industrial conditions
When to choose this model
- Used in large transport systems.
- Used in high-performance systems.
- Ensures reliable detection of large objects.
- Ensures highest operational reliability.
Connection
The sensor has an NPN output, so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) have a yellow status LED wired for a PNP output and are not suitable for NPN sensors.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
