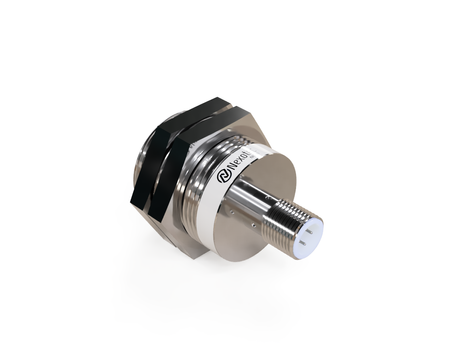

Inductive sensor M30 48 mm connector M12 PNP NO & NC Sn = 22 mm
- ● Large M30 simplifies component placement
- ● Threaded M30 housing for mounting in a hole or bracket
- ● Sn distance for greater operating range
- ● Plug-in – splash- and water-resistant
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS30346 with a PBT sensing face is a proven solution for applications requiring high abrasion resistance.
The M30 sensor supports machine performance in modern technological lines. The Ø30 x 48 mm sensor provides secure seating even in very demanding operating conditions.
Technical specification:
- Diameter: M30, maximum detection range in this design class
- Length: 48 mm, easy integration with mounting systems
- Sensing range: 22 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, stable mechanical properties of the material
- Sensing face material: PBT, sensing face material – PBT
- Mounting: Flush mounting
- Switching function: NO & NC
- Cable length: n/d
- Supply voltage: DC 10-30V, stable operation in DC automation
Applications
- Position control of parts in automotive assembly lines.
- Support for automatic clamping systems.
- Detection of metal elements and components in packaging systems.
- Detection of elements in robotic work zones.
- Use in actuator and mechanism control systems.
Features and Benefits
- Easy integration with robotic and PLC systems
- Stable operation in CNC machines and automation systems
- Reliable operation in automated packaging systems
- Reliable synchronization of machines and robots
- Versatile use in different OEM machine types
When to choose this model
- Good for extreme environmental conditions.
- Suitable for dusty environments.
- Used in large-scale industrial installations.
- Ensures highest operational reliability.
Connection
The sensor has two outputs, NO and NC, on separate pins (NO on pin 4, NC on pin 2), so connect it with an M12 4-pin connection cable without LEDs, which brings out both pins separately. In cables with LEDs (NXOC12281…, NXOC12401…) pins 2 and 4 are joined inside the connector, so they are not suitable for sensors with two outputs.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
This product is covered by a 24-month warranty from the date of purchase. Claims can be submitted via the complaint form in our shop. Your statutory rights are not affected by this warranty.
